XCubeNAS

XN5112RE

Capacity-Optimized and Cost-Effective Rackmount NAS​​

CPU

Intel® Xeon® 2-core Processor​​

RAM

8 GB DDR4 ECC DIMM​​​ (Max 256 GB)​

Hybrid Storage​

Onboard M.2 NVMe​​​

Scalability​

Expandable up to multi-PB level​​

Economically Scale-Up Capacity as Needed to PBs​

The XCubeNAS 5112RE (2U 14-bay) is a versatile network attached storage system that delivers the best value for its capacity and cost. Harboring powerful capabilities for I/O expansion, it provides a cost effective, comprehensive solution for file storage and backup, enabling flexible scaling to the multi-petabyte level to save additional investment by consolidating various application usages into one XCubeNAS.​

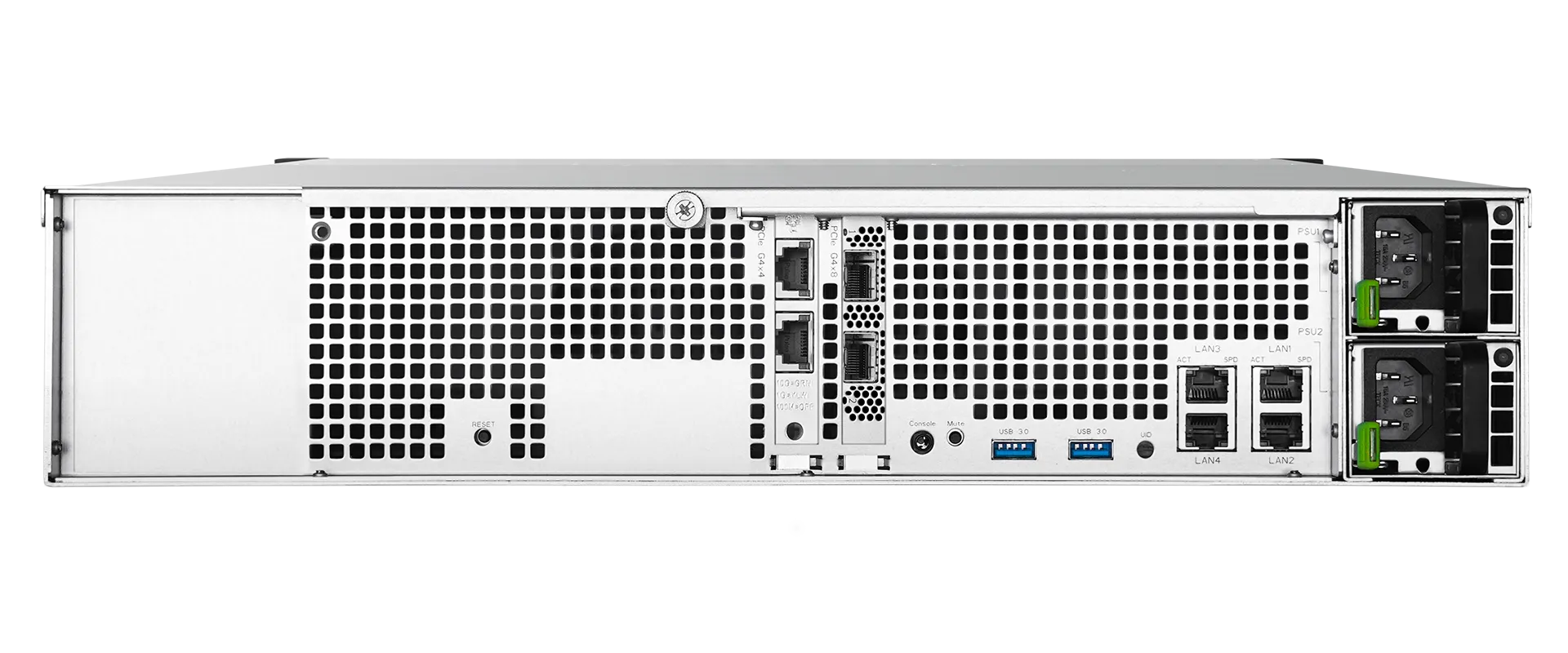

XN5112RE Rear Side Magnifying

QSM Data Management System​

QSM inherits the native features of ZFS, providing high scalability, easy management, and data integrity to build a perfect unified storage system. Plan ahead with nearly unlimited file size, deploy your storage within 5 minutes via quick installation, and secure your data with multi-level security.​​

Why QSAN XCubeNAS?​​

All-in-One Versatility​​

Through multi protocols and Windows AD and LDAP Directory service support, XCubeNAS can replace a file server, integrate applications, and host virtual servers.​

Unparalleled Scalability​​

Start from small architecture, then expand freely up to the multi-petabyte level.​​

Bulletproof Security​

WORM (Write Once Read Many), pool encryption, and SED (Self-Encrypting Drive) provides three levels of security that protects your data form cyberattacks and physical theft.​​

Modern Simplicity​

Simplify storage management through quick installation and an intuitive dashboard for resource monitoring.​​​

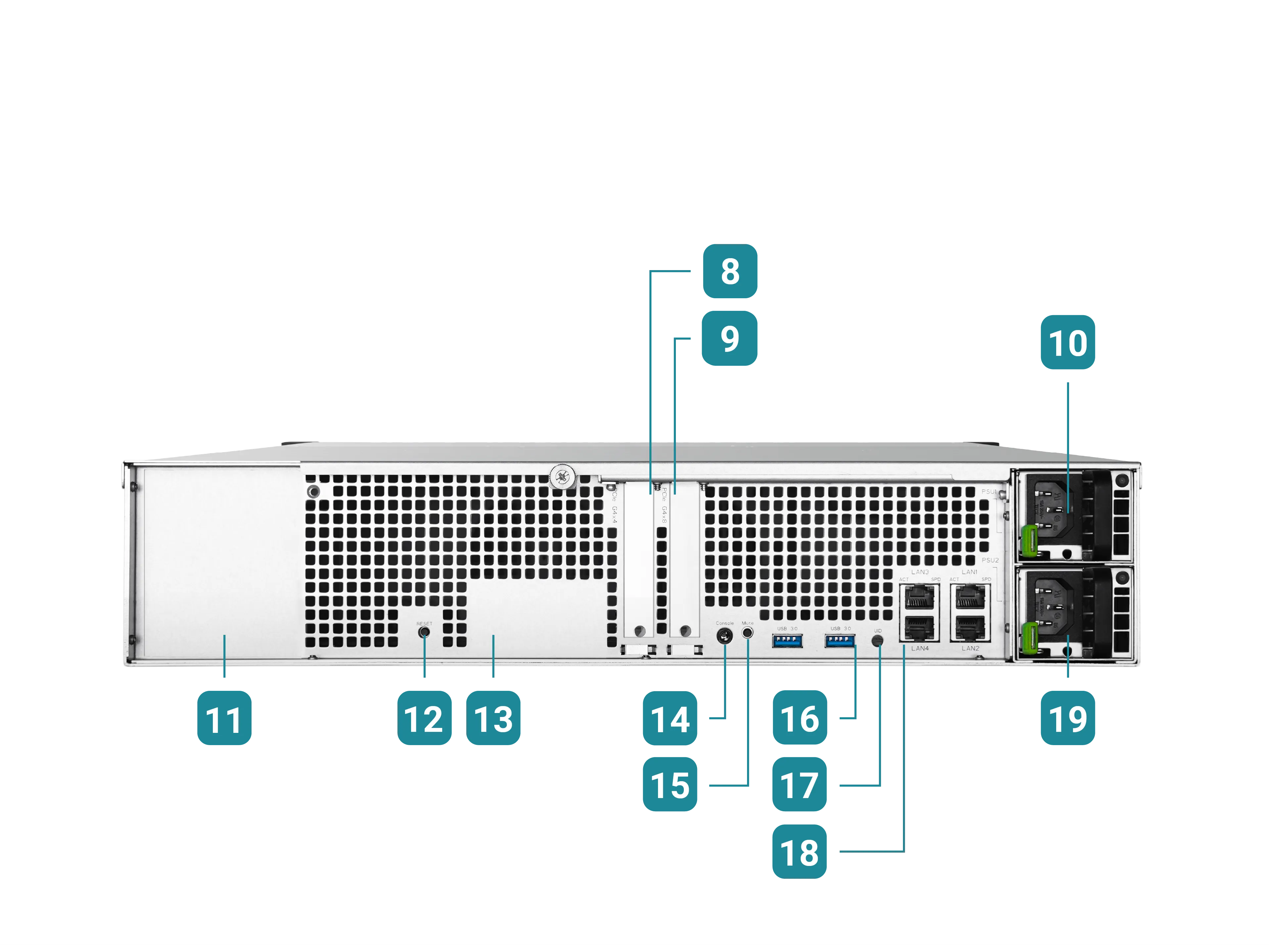

Enclosure Status LED Enclosure Access LED Enclosure Power Button / LED Disk Drive Status LED Indicator Disk Drive Power LED Indicator USB Port UID (Unique Identifier) Button / LED Host Card Slot 1 (host card is an optional part) Host Card Slot 2 (host card is an optional part) Power Supply Unit 1 Empty Reset to Factory Default Button Empty Console Port Buzzer Mute Button USB Port UID (Unique Identifier) LED 2.5 GbE (RJ45) LAN Port Power Supply Unit 2

System Specifications

Architecture Single Controller
Storage OS QSM Specification Details
CPU
Processor Intel® Xeon® 64-bit 2-core
Memory
Memory Module Pre-installed 8 GB DDR4 ECC DIMM
Total Memory Slots 4
Memory Expandable up to 256 GB
Storage
Drive Bays

3.5" Slot x 12

M.2 Slot x 2
Maximum Drive Bays with Expansion Unit 422
Compatible Drive Type

3.5" SATA HDD & 2.5" SATA SSD

NVMe M.2 SSD
Drive Interface

SATA x 12 (6 Gb/s)

M.2 NVMe x 2 (PCIe Gen 3x2)
Maximum Internal Raw Capacity 272 TB
Maximum Raw Capacity with Expansion Units 9,248 TB
Hot Swappable Drive
Notes M.2 slot does not support hot plugging
Connectivity Port
PCIe Expansion (Gen 4x8 Slot) x 1, (Gen 4x4 Slot) x 1
{0} GbE RJ45 LAN Port 4 (onboard)
{0} GbE SFP+ LAN Port 2 (option)
{0} GbE RJ45 LAN Port 2 (option)
{0} GbE SFP28 LAN Port 2 (option)
Expansion and External Port
12 Gb/s SAS Wide Port 2 (option)
USB Port 1 (front) / 2 (rear)
Others Console Port x 1
Software Specification
Storage OS QSM
RAID Type 0 / 1 / 5 / 6 / Z3 / 10 / 50 / 60
Storage Efficiency Thin Provisioning / Deduplication / Compression
Software Acceleration Hybrid SSD Cache / Auto Tiering
Data Protection Snapshot / Local Volume Clone
Remote Replication Rsync / Xmirror / Asynchronous
Security SED / WORM / Pool Encryption
Support Protocols AFP / CIFS / FTP / iSCSI / NFS / WebDAV
Management Web UI / Serial Console / RESTful API / S.E.S. / LCM
Appearance
Dimension (H x W x D) (mm) 88.5 x 438 x 515
Net Weight (kg) 11.1
Gross Weight (kg) 15.7
Notes -
Others
System Fan 2 pcs
Power Supply Unit 450W x 2 (80 PLUS Platinum)
Power Input 100 - 240 VAC, 50 - 60 Hz
Power Consumption 255 W
British Thermal Unit 869 BTU
Environment Temperature
Operating Temperature 0°C to 40°C
Storage Temperature -10°C to 50°C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 10% to 90%
Certification
Certifications CE / FCC / BSMI
Warranty
Standard Warranty System: {0} years
