XCubeSAN

XS3316

Versatile for Mixed Workloads

CPU

Intel® Xeon® 4-Core Processor​

RAM

16 GB DDR4 ECC DIMM​ (up to 512 GB)​

High Availability​

Fully Redundant Modular Design​​

Build-in High Speed​

Benefits of 10 GbE Network​​

Versatile for Mixed Workloads​

The XCubeSAN 3316 (3.5" 3U 16-bay) is an affordable, right-sized hybrid flash​ storage system. It‘s the new standard for entry-level storage workloads, with extreme simplicity, scalability, and a balance of performance and price for SMB limited budgets. Outstanding performance is ideal for modern enterprise applications such as virtualization, media editing, large scale surveillance, and backup.​

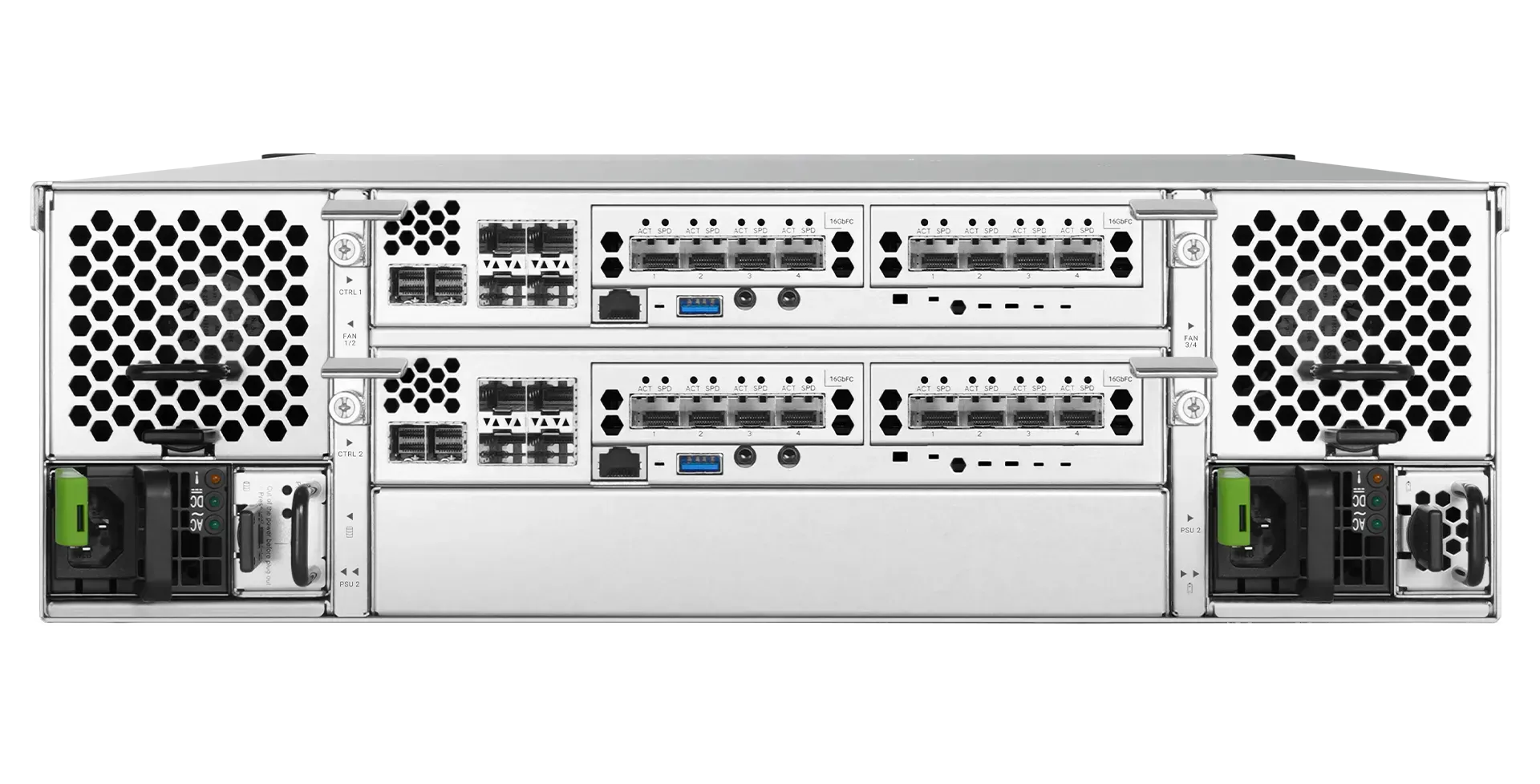

XF3316 Rear Side Magnifying

XEVO Data Management System

XEVO, a flash-based storage management system, minimizes the learning curve and eases maintenance through an intuitive GUI. Data can be accessed in 5 minutes after installation. XEVO‘s core technology provides the excellence, flexibility, and intelligence needed to simplify all content for a hybrid storage system.​​​

Why QSAN XCubeSAN Arrays?​

Outstanding Performance​

Excellent performance with 12.8 GB/s and 1.3M IOPS, outstanding scale-up capability up to 16.7 PB.

Dependable Data Experience​

99.999% high availability design with no single point of failure, cache-to-flash to protect cache data in power outage.​​

Versatile Connectivity​

Each controller with built-in 4-port 10 GbE (SFP+) and maximum 12 host ports allows​ direct connection to multiple hosts without switches.​​

Modern Simplicity​

Simplify storage management with the intuitive and powerful XEVO storage manager interface.​​

Enclosure Status LED Enclosure Access LED Enclosure Power Button / LED Disk Drive Status LED Indicator Disk Drive Power LED Indicator USB Port Unique Identifier (UID) Button / LED Indicator Power Supply Unit Master / Slave LED (only for dual controllers) Controller Status LED Dirty Cache LED UID (Unique Identifier) LED 12 Gb/s SAS Wide Port 10 GbE iSCSI (SFP+) Port Management Port Host Card Slot 1 (host card is an optional part) Service Port Console Port USB Port Host Card Slot 2 (host card is an optional part) Reset to Factory Default Button Buzzer Mute Button

System Specifications

Architecture XS3316D: Dual-active controller
XS3316S: Single-upgradeable controller
Storage OS XEVO Specification Details
CPU
Processor Intel® Xeon® 64-bit 4-core
Memory
Memory Module Pre-installed 8 GB DDR4 ECC DIMM (per controller)
Total Memory Slots 4 (per controller)
Memory Expandable up to 256 GB (per controller)
Storage
Drive Bays

3.5" Slot x 16

Maximum Drive Bays with Expansion Unit 496
Compatible Drive Type

3.5" & 2.5" SAS, NL-SAS, SED HDD

3.5" & 2.5" SATA(*) HDD

2.5" SAS, SATA(*), SED SSD

Drive Interface SAS 12 Gb/s, SATA 6 Gb/s(*)

Maximum Internal Raw Capacity 352 TB (calculate 22 TB HDD)
Maximum Raw Capacity with Expansion Units 10,912 TB (calculate 22 TB HDD)
Hot Swappable Drive
Notes

(*) SATA drives only work with single controller systems

Connectivity Port
PCIe Expansion (Gen3x8 Slot) x 2
{0} GbE RJ45 LAN Port 1 (onboard management port per controller)
{0} GbE SFP+ LAN Port 4 iSCSI (onboard per controller) / 4 iSCSI (option)
{0} GbE RJ45 LAN Port 2 iSCSI (option)
{0} GbE SFP28 LAN Port 2 iSCSI (option)
{0} Gb SFP+ Fibre Channel 4 (option) / 2 (option)
{0} Gb SFP28 Fibre Channel 2 (option)
Expansion and External port
12 Gb/s SAS Wide Port 2 (onboard per controller)
USB Port 1 (front) / 2 (rear)
Others Console Port x 1, Service Port (UPS) x 1
Software Specification
Storage OS XEVO
RAID Type 0 / 1 / 5 / 6 / 10 / 50 / 60 / 5EE / 6EE / 50EE / 60EE / N-way mirror
Storage Efficiency Thin provisioning
Software Acceleration SSD cache (option) / Auto tiering (option)
Data Protection Snapshot / Local volume clone
Remote Replication Asynchronous (Built-in) / Synchronous (option)
Security HTTPS / SSH / iSCSI CHAP / ISE & SED
Management Web UI / Serial console / RESTful API / S.E.S. / LCM
Appearance
Dimension (H x W x D) (mm) 130.4 x 438 x 515
Net Weight (kg) 21.7
Gross Weight (kg) 24
Others
Memory Protection Cache-to-Flash (Supercapacitor Module + Flash Module)
System Fan 4 pcs
Power Supply Unit 850 W x 2 (80 PLUS Platinum)
Power Consumption 534 W
Certification
Certifications CE / ECC / BSMI
Warranty
Standard Warranty System: {0} years
Supercapacitor Module: 1 year
