Enterprise Data Management for Unified Storage

QSM (QSAN Storage Manager) is an innovative storage operating system designed for unified storage products. Based on QFS (QSAN File System), QSM brings new levels of simplicity, flexibility, and security with proven storage efficiencies, high performance, and leading cloud integration.

Complete All Business in One

QSM delivers unified storage features including support for a range of multi protocols, thin provisioning, SSD cache, auto-tiering, compression, inline deduplication, and more. With the help of an intuitive dashboard, managers can monitor storage status in real time.

Complete and Efficiency Data backup

QSM effectively addresses the modern businesses' data threats by providing comprehensive and effective backup solutions that assist you design a complete and efficient backup solution to minimize the risk of data loss. In addition, new QSM can support cross-platform replication to integrate QSAN block and unified storages.

Circle combination of a hollow shield icon

Agile and Always Simple

With QSM, you can save your time building storage environments by utilizing automatic functions which enable the deployment of multiple volumes in just one step.

Geometry design of shapes stacking and aligning

One Platform +

Complete All Business in One

QSM delivers unified storage features including support for a range of multi protocols, thin provisioning, SSD cache, auto-tiering, compression, inline deduplication, and more. With the help of an intuitive dashboard, managers can monitor storage status in real time.
Reliable +

Complete and Efficiency Data backup

QSM effectively addresses the modern businesses' data threats by providing comprehensive and effective backup solutions that assist you design a complete and efficient backup solution to minimize the risk of data loss. In addition, new QSM can support cross-platform replication to integrate QSAN block and unified storages.
Simple +

Agile and Always Simple

With QSM, you can save your time building storage environments by utilizing automatic functions which enable the deployment of multiple volumes in just one step.

Enlarge Storage Capacity

QSM provides deduplication, compression, and thin provisioning functions to save storage space and achieve effective cost control.
‧ Inline Deduplication
‧ Compression
‧ Auto Tiering (for block level)
‧ Thin Provisioning

Facing Modern Security Threats Proactively

QSM secures your current data by delivers an actionable, proactive protection strategy to minimize potential risks.
‧ WORM (Write Once Read Many)
‧ SED (Self-Encrypting Drive)

Virtualization Ready

QSM is verified with VMware® Ready™ and Microsoft® Hyper-V™ certified. No matter which virtualization environment you’ve adopted, the QSM is a practical and efficient storage system for you to deploy in any virtualization platform.

The Benefit of QSM

Availability

Safety

Versatility

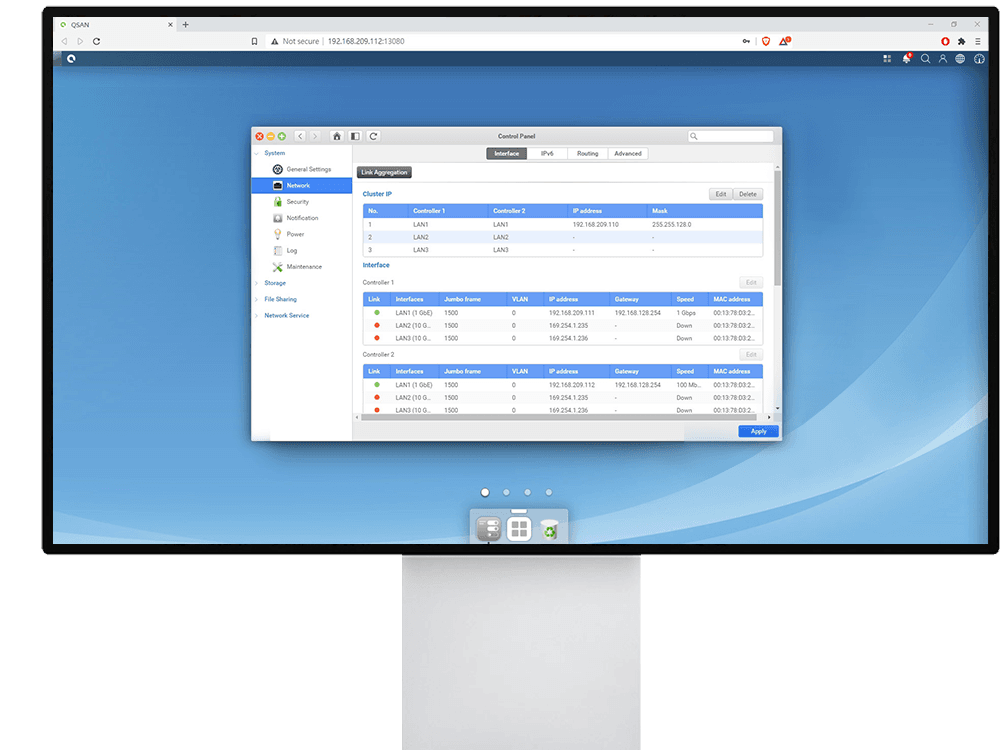

The service interruption can be a huge hidden cost for your company. QSM is a highly available and resilient software with smart failover, non-disruptive software / hardware upgrade, replacement, and diverse RAID types to help the company minimize service downtime, ensuring critical applications stay online forever.

The Benefit of QSM

Availability

Safety

Versatility

Don't Just Take Our Word for It!

“With installed three XCubeNAS units, the rich enterprise features and the performance are what we were precisely looking for our applications. "

Richfield Bloomington Credit Union RBCU, United States

“Hypervisor Manager in XCubeNAS is a powerful yet user-friendly feature, providing us with confidence in solving complex network infrastructure challenges.”

URI System, Korea

"When looking for a network cloud storage server this time, the orientation is mainly for enterprise-level use. Therefore, the purchase has indeed greatly improved the use of CIFS multi-person connection, and the performance has also been improved a lot."

Transcosmos, Taiwan

“Hypervisor Manager in XCubeNAS is a powerful yet user-friendly feature, providing us with confidence in solving complex network infrastructure challenges.”

URI System, Korea

QSM Specifications

Operating System	64bit embedded Linux
Unified Storage Server	NAS application server (Gigabit/10GbE NIC) iSCSI storage (Gigabit/10GbE NIC) Fibre Channel storage (16Gb)
File Server	File sharing across Windows/Mac/Linux/UNIX and centralized management
FTP Server	Supports data access from remote location via FTP Bandwidth Control Connection control FTP with SSL/ TLS (explicit) mode FXP supported Passive FTP port range control
Backup Server	Snapshot and Replication Block-Level Snapshot and Replication Schedule and manually taking Snapshot Snapshot retention policy Snapshot Single file restore Snapshot lock XMirror (Multi-sites Volume and folder backup and synchronization) Public Cloud backup: Alibaba Cloud OSS, HiCloud S3, Amazon S3 and S3 compatible Public Cloud synchronization: Google Drive, Microsoft OneDrive, Dropbox Time machine Backup server External storage device backup 3rd party backup software support: Acronis True Image, CA BrightStor ARCserveBackup,EMC Retrospect, Symantec Backup Exec,LaCie Silverkeeper
Operating System	Linux-embedded system
Connection	IPv4, IPv6
Networking	VLAN Link aggregation (support 11 bonding modes) Multi-IP settings Gigabit Jumbo Frame
File System	ZFS file system
Supported Operating Systems	Windows Mac OS X Linux (2.6 or later) and UNIX
Storage Management	Single disk, RAID 0, 1, 5, 6, Z3, 10, 50, 60 and JBOD Global and Dedicated spare disk Disk management Disk S.M.A.R.T check Instant RAID RAID Fast Rebuild Multi-pool and volume management Storage capacity management Pool and Volume thread hole notification Online Pool expansion and migration Online volume expansion Build in iSCSI initiator and Target External storage device management Pool Encryption Support Disk cache Data Scrubbing SSD Read and Write cache Deduplication (volume and LUN) Snapshot (folder and LUN) Compression (volume and LUN) Thin Provision for LUN Self-encryption Drive (SED) pool level protection
User Management	Local / domain user and group management Local / domain application privilege User quota for local and domain user Home folder Windows AD and LDAP support Trust domain and support up to 200,000 domain user
Folder Management	Advanced ACL Windows ACL Hide shared folder on Windows network Unicode support WORM (Write Once Read Many protection) Folder usage threshold notification Folder quota File retention
System Tool	NTP time settings Notification: Email alert (SMTP authentication), syslog, and SNMP System firmware update Back up, restore, reset system settings Import system configuration Smart fan IP access control Policy-based unauthorized IP blocking Secure remote login by SSH connection Connection list management SNMP UPS support Network recycle bin Import SSL certificate Real-time Resource (CPU, Memory, Storage, Pool, Process)/ HardwaService/ Network resource monitor
Power Management	Power schedule Wake on LAN UPS settings Recover from power outage
System Optimization Settings	Service binding User application mode
Log	System log System connection and data transfer log
Multilingual Support	Chinese (Traditional & Simplified), English, French, German, Italian, Japanese, Korean, Russian, Polish
File Manager	File preview Embedded file player Filter Mount Cloud (Google Drive, OneDrive, Dropbox) ISO image mount CIFS, FTP, SFTP and WebDAV client Share link Team folder sharing Publish to facebook, twitter, weibo Media library Media streaming Online doc preview and editing Transcoding (online/offline), compression
Service	Data service: CIFS, AFP, NFS, FTP Block storage: iSCSI, Fibre Channel Backup service: Rsync Discover service: Bonjour
Virtualization	Windows: Hyper-V, storage space VMware: VMware 7.0 ready, VAAI, SRM Citrix: Citrix 7.0 ready
Multi-Browser Support	Internet Explorer Safari Firefox Google Chrome
Utility	XFinder Web Finder VASA Provider Veeam Agent for Microsoft Windows
Notes	-

QSM Specifications

Operating System	64bit embedded Linux
Unified Storage Server	NAS application server (Gigabit/10GbE NIC) iSCSI storage (Gigabit/10GbE NIC) Fibre Channel storage (16Gb) Direct-attached storage with Thunderbolt™ 3 (40GbE){0}
File Server	File sharing across Windows/Mac/Linux/UNIX and centralized management
FTP Server	Supports data access from remote location via FTP Bandwidth Control Connection control FTP with SSL/ TLS (explicit) mode FXP supported Passive FTP port range control
Backup Server	Snapshot and Replication Block-Level Snapshot and Replication Schedule and manually taking Snapshot Snapshot retention policy Snapshot Single file restore Snapshot lock XMirror (Multi-sites Volume and folder backup and synchronization) Public Cloud backup: Alibaba Cloud OSS, HiCloud S3, Amazon S3 and S3 compatible Public Cloud synchronization: Google Drive, Microsoft OneDrive, Dropbox Time machine Backup server External storage device backup 3rd party backup software support: Acronis True Image, CA BrightStor ARCserveBackup,EMC Retrospect, Symantec Backup Exec,LaCie Silverkeeper
Web Server	Built-in phpMyAdmin
SQL Server	MariaDB database server
VPN Server	Supports OpenVPN, PPTP and IPsec+L2TP
Virtualization Server	Virtual machine import/export Virtual machine backup Virtual machine Snapshot User-based permissions settings Support virtual switch Supports access from IE, Safari, Firefox,Chrome Windows, Linux, UNIX and Android
Operating System	Linux-embedded system
Connection	IPv4, IPv6 and DDNS domain name registration (QSAN Cloud) Auto port forwarding
Networking	VLAN Link aggregation (support 11 bonding modes) Multi-IP settings Gigabit Jumbo Frame
File System	ZFS file system EXT2 (Virtual Volume) EXT3 (Virtual Volume) EXT4 (Virtual Volume) FAT (Virtual Volume) NTFS (Virtual Volume) HFS (Virtual Volume) exFAT
Supported Operating Systems	Windows Mac OS X Linux (2.6 or later) and UNIX
Storage Management	Single disk, RAID 0, 1, 5, 6, Z3, 10, 50, 60 and JBOD Global and Dedicated spare disk Disk management Disk S.M.A.R.T check Instant RAID RAID Fast Rebuild Pool application mode: General, Media Streaming, and Database Multi-pool and volume management Storage capacity management Pool and Volume thread hole notification Online Pool expansion and migration Online volume expansion Build in iSCSI initiator and Target Virtual Volume Auto-Tiering External storage device management Pool Encryption Support Disk cache Data Scrubbing SSD Read and Write cache Deduplication (volume and LUN){0} Snapshot (folder and LUN) Compression (volume and LUN) Thin Provision for LUN Self-encryption Drive (SED) pool level protection
User Management	Local / domain user and group management Local / domain application privilege User quota for local and domain user Home folder Windows AD and LDAP support Trust domain and support up to 200,000 domain user
Folder Management	Advanced ACL Windows ACL Hide shared folder on Windows network Unicode support WORM (Write Once Read Many protection) Folder usage threshold notification Folder quota
System Tool	NTP time settings Notification: Email alert (SMTP authentication), syslog, and SNMP System firmware update Back up, restore, reset system settings Import system configuration Antivirus Smart fan IP access control Policy-based unauthorized IP blocking Secure remote login by SSH connection Connection list management SNMP UPS support Network recycle bin Import SSL certificate Real-time Resource (CPU, Memory, Storage, Pool, Process)/ HardwaService/ Network resource monitor
Power Management	HDD Hibernation Power schedule Wake on LAN UPS settings Recover from power outage
System Optimization Settings	Service binding User application mode SSD Trim
Log	System log System connection and data transfer log
Multilingual Support	Chinese (Traditional & Simplified), English, French, German, Italian, Japanese, Korean, Russian, Polish
File Manager	File preview Embedded file player Filter Mount Cloud (Google Drive, OneDrive, Dropbox) ISO image mount CIFS, FTP, SFTP and WebDAV client Share link Team folder sharing Publish to facebook, twitter, weibo Media library Media streaming Online doc preview and editing Transcoding (online/offline), compression
Service	Data service: CIFS, AFP, NFS, FTP, WebDAV Backup service: Rsync Discover service: Bonjour
Virtualization	Windows: Hyper-V, storage space VMware: VMware 7.0 ready, VAAI, SRM Citrix: Citrix 7.0 ready
Multi-Browser Support	Internet Explorer Safari Firefox Google Chrome
Utility	XFinder Web Finder
Mobile App	Xccess (iOS, Android)
Notes	Fibre Channel storage is only applicable to: XN7016R, XN7024R, XN8016R, XN8024R Thunderbolt™ 3 solution is only applicable to: XN5004R, XN5008R, XN5012R, XN7004R, XN7008R, XN7012R, XN8008R, XN8012R, XN5004T, XN5008T, XN7004T, XN7008T, XN8004T, XN8008T Virtualization Server is only applicable to: XN5004R, XN5008R, XN5012R, XN7004R, XN7008R, XN7012R, XN8008R, XN8012R, XN5004T, XN5008T, XN7004T, XN7008T, XN8004T, XN8008T For XN3002T: Single disk, RAID 0, 1, 5, 6 For XN3004T, XN5004T, XN8004T: Single disk, RAID 0, 1, 5, 6, Z3, 10 and JBOD For XN5008T, XN7008T, XN8008T: Single disk, RAID 0, 1, 5, 6, Z3, 10, 50, 60 and JBOD For XN5004R, XN5008R, XN5012R, XN7004R, XN7008R, XN7012R, XN7016R, XN7024R, XN8008R, XN8012R, XN8016R, XN8024R: Single disk, RAID 0, 1, 5, 6, Z3, 10, 50, 60 and JBOD Deduplication is NOT applicable to XN3002T, XN3004T, XN3004R
