XN5012RE

CPU

Intel® Celeron® 2.9GHz Dual-Core Processor

RAM

8GB DDR4 U-DIMM (Max 64GB)

Scalability

Connect up to 8 Expansion Units

Flexible PCIe Expansion

High Speed 10GbE Adapter Card

Easy File Access with Quick Connection

Web Finder

No need to install any applications, you can easily find your XCubeNAS.

Find your NAS

XFinder

XFinder is a desktop utility that searches for QSAN XCubeNAS devices in the local area network.

Find your NAS

Lightest SMB Multi-function Data Center

WORM

WORM technology is designed to prevent intentional modification and help your data away from ransomware attack.

XReplicator

The most reliable and efficient PC backup solution on XCubeNAS.

XMirror

You can regularly synchronizes a volume, or the contents of a folder between multiple XCubeNAS devices.

Rsync

Data copies can be distributed to your trusted storage locations through real-time remote backup.

Snapshot Replication

Transporting snapshots to multiple XCubeNAS to help administrators utilize the storage capacity and secure your data.

File Retention

Automatically file management increases the efficiency of the storage capacity.

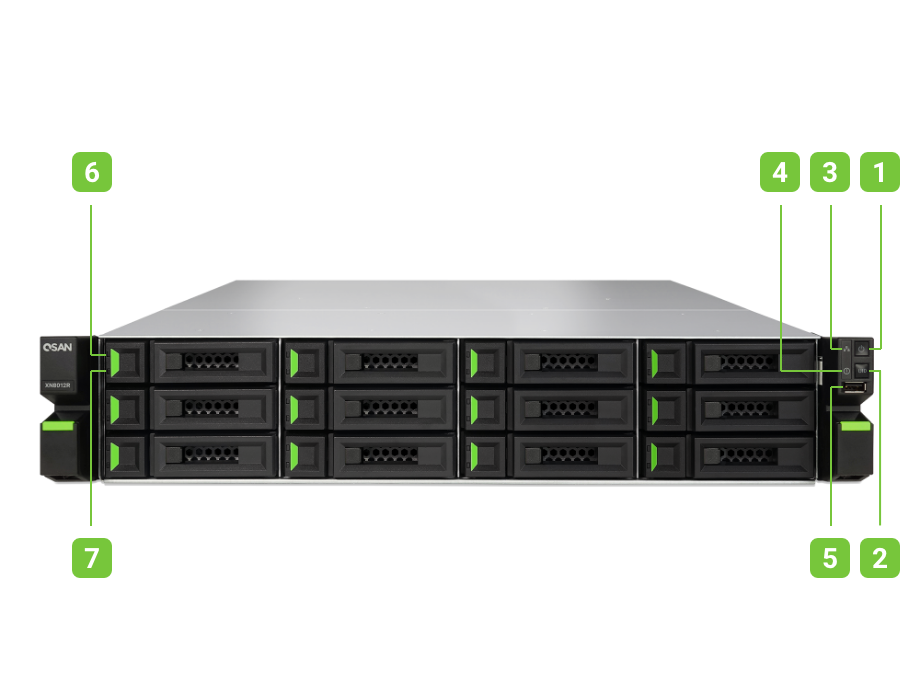

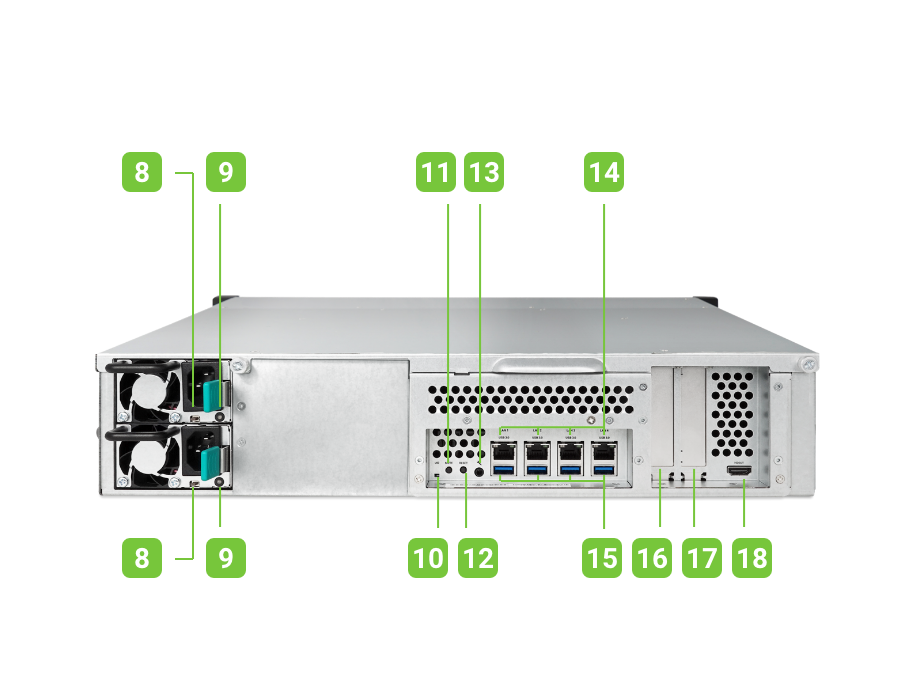

Power Button/LED Indicator for Power Status Unique Identifier (UID) Button/LED Indicator System Access LED Indicator System Status LED Indicator USB 2.0 Port Disk Drive Power LED Indicator Disk Drive Status LED Indicator Power Supply Unit – PSU Indicator and Beep Off Button Power Supply Unit – Power Port Unique Identifier (UID) LED Indicator Mute Button Reset Button Console Port Gigabit LAN Port USB 3.0 Port Additional PCIe Slot for Expansion (Gen3 x 8) Additional PCIe Slot for Expansion (Gen3 x 4) HDMI Port

Hardware Specifications

CPU
Architecture	All-in-one
Storage OS	QSM 3 Specification Details
Processor	Intel® Celeron®
CPU Architecture	64-bit
CPU Frequency	Dual-Core 2.9GHzz
Memory
System Flash	8GB USB DOM
Memory Module Pre-installed	8GB DDR4 U-DIMM
Total Memory Slots	4
Memory >Expandable up to	64 GB
Notes	-
Storage
Drive Bays	3.5" Slot x 12
Maximum Drive Bays with Expansion Unit	204
Compatible Drive Type	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD
Drive Interface	SATA 6Gb/s (backward compatible with SATA 3Gb/s)
Maximum Internal Raw Capacity	192TB
Maximum Raw Capacity with Expansion Units	3264TB
Hot Swappable Drive
Notes	For more information, please refer to compatibility matrix and hardware manual Maximum internal raw capacity= 16 TB drive x 12 Capacity may vary by RAID types
External Port
USB 2.0 Port	1 (Front)
USB 3.0 Port	4 (Rear)
HDMI Port	1
Others	Console Port x1
Notes	-
Connectivity Port
{0}GbE RJ45 LAN Port	4 (Onboard)
{0}GbE RJ45 LAN Port	2 (Option: THBE10R2)
{0}GbE SFP+ LAN Port	2 (Option: XN-E1002)
Thunderbolt 3	2 (Option: XN-TB302)
{0}Gb SFP+ Fibre Channel	-
Notes	For more information, please refer to accessory book Please refer to the section below for expansion slot specification
Expansion Port
12Gb/s SAS Wide Port	2 (Option: XN-S1202)
Notes	For more information, please refer to accessory book
PCIe Expansion
Gen3x8 Slot	1
Gen3x4 Slot	1
Notes	For more information, please refer to hardware manual
Host Card Expansion
Gen3x8 Slot	-
Gen2x4 Slot	-
Notes	-
Appearance
Dimension (H x W x D) (mm)	88.5 x 438 x 510
Chassis Form Factor	19" Rackmount 2U 12 Bay
Net Weight (kg)	12.7
Gross Weight (kg)	14.1
Notes	-
Memory Protection
Cache-to-Flash Module	-
Battery Backup Module + Flash Module	-
Notes	-
Others
System Fan	60mm x 60mm x 3 pcs
Replaceable System Fan
Power Recovery
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter	250W x2
Redundant Power Supply
AC Input Power Voltage	100V-240V
Power Frequency	50-60 Hz, Single Phase
Power Consumption	300 W (Access) 168 W (HDD Hibernation)
British Thermal Unit	1023 BTU/hr (Access) 573 BTU/hr (HDD Hibernation)
LCM Support
Notes	-
Environment Temperature
Operating Temperature	0 to 40°C
Storage Temperature	-10°C to 50°C
Operating Relative Humidity	20% to 80% non-condensing
Non-operating Relative Humidity	10% to 90%
Notes	-
Certification
Certifications	CE FCC BSMI VCCI RCM
Notes	-
Warranty
Standard Warranty	{0} years
Notes	-

Operating System	64bit embedded Linux
Unified Storage Server	NAS application server (Gigabit/10GbE NIC) iSCSI storage (Gigabit/10GbE NIC) Fibre Channel storage (16Gb){0} Direct-attached storage with Thunderbolt™ 3 (40GbE){0}
File Server	File sharing across Windows/Mac/Linux/UNIX and centralized management
FTP Server	Supports data access from remote location via FTP Bandwidth Control Connection control FTP with SSL/ TLS (explicit) mode FXP supported Passive FTP port range control
Backup Server	Snapshot and Replication Block-Level Snapshot and Replication Schedule and manually taking Snapshot Snapshot retention policy Snapshot Single file restore Snapshot lock XMirror (Multi-sites Volume and folder backup and synchronization) Public Cloud backup: Alibaba Cloud OSS, HiCloud S3, Amazon S3 and S3 compatible Public Cloud synchronization: Google Drive, Microsoft OneDrive, Dropbox Time machine Backup server External storage device backup 3rd party backup software support: Acronis True Image, CA BrightStor ARCserveBackup,EMC Retrospect, Symantec Backup Exec,LaCie Silverkeeper Symantec Backup Exec,LaCie Silverkeeper
Web Server	Built-in phpMyAdmin
SQL Server	MariaDB database server
VPN Server	Supports OpenVPN, PPTP and IPsec+L2TP
Virtualization Server{0}	Virtual machine import/export Virtual machine backup Virtual machine Snapshot User-based permissions settings Support virtual switch Supports access from IE, Safari, Firefox,Chrome Windows, Linux, UNIX and Android
Operating System	Linux-embedded system
Connection	IPv4, IPv6 and DDNS domain name registration (QSAN Cloud) Auto port forwarding
Networking	VLAN Link aggregation (support 11 bonding modes) Multi-IP settings Gigabit Jumbo Frame
File System	ZFS file system EXT2 (Virtual Volume) EXT3 (Virtual Volume) EXT4 (Virtual Volume) FAT (Virtual Volume) NTFS (Virtual Volume) HFS (Virtual Volume)
Supported Operating Systems	Windows Mac OS X Linux (2.6 or later) and UNIX
Storage Management	Single disk, RAID 0, 1, 5, 6, Z3, 10, 50, 60 and JBOD{0} Global and Dedicated spare disk Disk management Disk S.M.A.R.T check Instant RAID RAID Fast Rebuild Pool application mode: General, Media Streaming, and Database Multi-pool and volume management Storage capacity management Pool and Volume thread hole notification Online Pool expansion and migration Online volume expansion Build in iSCSI initiator and Target Virtual Volume Auto-Tiering External storage device management Pool Encryption Support Disk cache Data Scrubbing Virtual Volume SSD Read and Write cache Deduplication (volume and LUN){0} Snapshot (folder and LUN) Compression (volume and LUN) Thin Provision for LUN Self-encryption Drive (SED) pool level protection
User Management	Local / domain user and group management Local / domain application privilege User quota for local and domain user Home folder Windows AD and LDAP support Trust domain and support up to 200,000 domain user
Folder Management	Advanced ACL Windows ACL Hide shared folder on Windows network Unicode support WORM (Write Once Read Many protection) Folder usage threshold notification Folder quota
System Tool	NTP time settings Notification: Email alert (SMTP authentication), syslog, and SNMP System firmware update Back up, restore, reset system settings Import system configuration Antivirus Smart fan IP access control Policy-based unauthorized IP blocking Secure remote login by SSH connection Connection list management SNMP UPS support Network recycle bin Import SSL certificate Real-time Resource (CPU, Memory, Storage, Pool, Process)/ HardwaService/ Network resource monitor
Power Management	HDD Hibernation Power schedule Wake on LAN UPS settings Recover from power outage
System Optimization Settings	Service binding User application mode SSD Trim
Log	System log System connection and data transfer log
Multilingual Support	Chinese (Traditional & Simplified), English, French, German, Italian, Japanese, Korean, Russian, Polish
File Manager	File preview Embedded file player Filter Mount Cloud (Google Drive, OneDrive, Dropbox) ISO image mount CIFS, FTP, SFTP and WebDAV client Share link Team folder sharing Publish to facebook, twitter, weibo Media library Media streaming Online doc preview and editing Transcoding (online/offline), compression
Service	Data service: CIFS, AFP, NFS, FTP, WebDAV Backup service: Rsync Discover service: Bonjour
Virtualization	Windows: Hyper-V, storage space VMware: VMware 6.7 ready, VAAI, SRM Citrix: Citrix 7.0 ready
Multi-Browser Support	Internet Explorer Safari Firefox Google Chrome
Utility	XFinder Web Finder
Mobile App	Xccess (iOS, Android)
Notes	Fibre Channel storage is only applicable to: XN7016R, XN7024R, XN8016R, XN8024R Thunderbolt™ 3 solution is only applicable to: XN5004R, XN5008R, XN5012R, XN7004R, XN7008R, XN7012R, XN8008R, XN8012R, XN5004T, XN5008T, XN7004T, XN7008T, XN8004T, XN8008T Virtualization Server is only applicable to: XN5004R, XN5008R, XN5012R, XN7004R, XN7008R, XN7012R, XN8008R, XN8012R, XN5004T, XN5008T, XN7004T, XN7008T, XN8004T, XN8008T For XN3002T: Single disk, RAID 0, 1, 5, 6 For XN3004T, XN5004T, XN8004T: Single disk, RAID 0, 1, 5, 6, Z3, 10 and JBOD For XN5008T, XN7008T, XN8008T: Single disk, RAID 0, 1, 5, 6, Z3, 10, 50, 60 and JBOD For XN5004R, XN5008R, XN5012R, XN7004R, XN7008R, XN7012R, XN7016R, XN7024R, XN8008R, XN8012R, XN8016R, XN8024R: Single disk, RAID 0, 1, 5, 6, Z3, 10, 50, 60 and JBOD Deduplication is only applicable to: XN5004R, XN5008R, XN5012R, XN7004R, XN7008R, XN7012R, XN8008R, XN8012R, XN5004T, XN5008T, XN7004T, XN7008T, XN8004T, XN8008T
