XCubeNAS

XN7004T

CPU

Intel® Core™i3 3.9GHz Dual-Core Processor

RAM

8GB DDR4 SO-DIMM (Max 32GB)

Hybrid Storage

Innovative N+1 Drive Tray Design

Flexible PCIe Expansion

High Speed 10GbE Adapter Card

Easy File Access with Quick Connection

Web Finder

No need to install any applications, you can easily find your XCubeNAS.

Find your NAS

XFinder

XFinder is a desktop utility that searches for QSAN XCubeNAS devices in the local area network.

Find your NAS

Best Enterprise-Level Encryption solution for Entry Enterprise and SMB

SED

Support self-encrypting drive technology

Smart Snapshot Retention

More protection but less resources

Rsync

Data copies can be distributed to your trusted storage locations through real-time remote backup.

AES256 Encryption

Pool encryption fulfill military regulations

Qouta

Effective management, optimize allocating

Storage for Virtualization

Compatible with virtualization standard for VMware® vSphere™，Veeam™，Microsoft® Hyper-V.

Perfect Architecture

Boost your performance via SSD cache

Hidden Heat Dissipation

Smart Fan Control

Tool-less Installation

Simple & Intuitive Use

Magnetic Lock Key

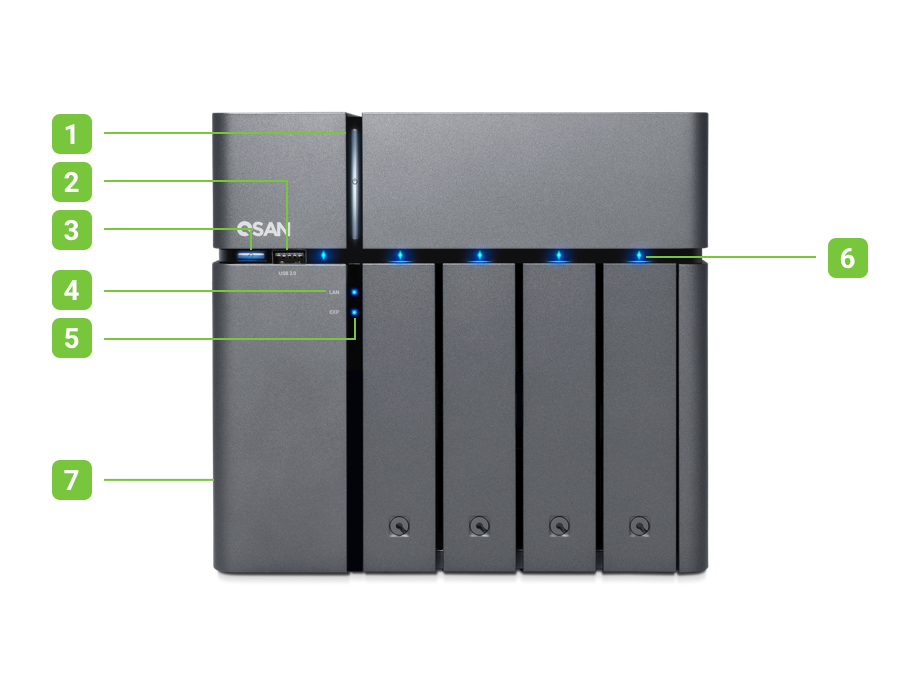

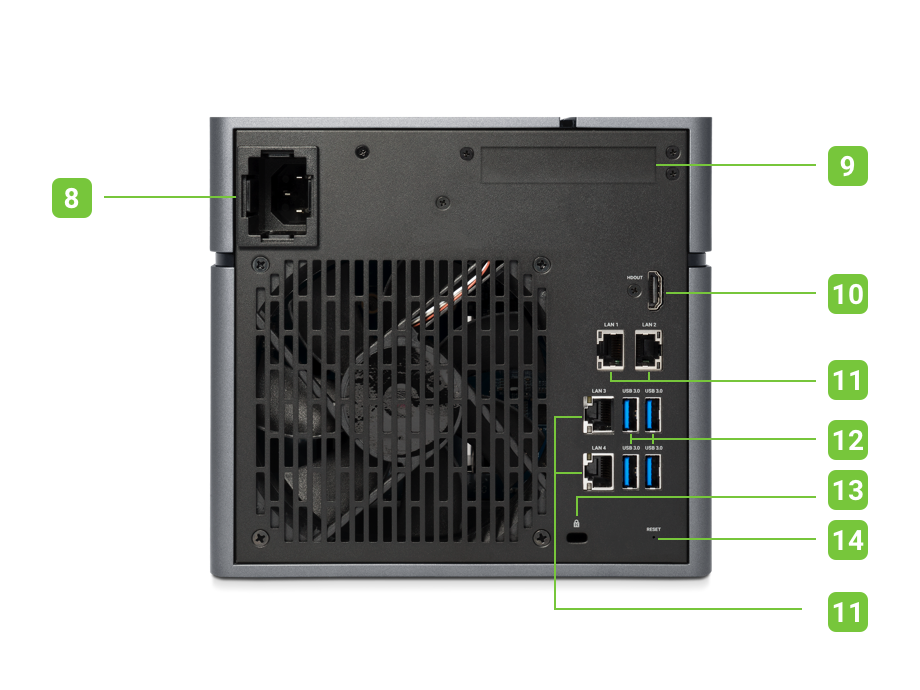

Power Button USB 3.0 Port USB Copy Button LAN Status Expansion Unit Status HDD and SSD Status Service Door Power Port Additional PCIe Slot for Expansion (Gen3 x 8) HDMI Port Gigabit LAN Port USB 3.0 Port Kensington Lock Reset to Factory Default Button

Hardware Specifications

CPU
Architecture	All-in-one
Storage OS	QSMSpecification Details
Processor	Intel ® Core™ i3
CPU Architecture	64-bit
CPU Frequency	Dual-Core 3.9GHz
Memory
System Flash	8GB USB DOM
Memory Module Pre-installed	8GB DDR4 SO-DIMM
Total Memory Slots	2
Memory Expandable up to	32 GB
Notes	-
Storage
Drive Bays	3.5" Slot x 4 2.5" Slot x 1
Maximum Drive Bays with Expansion Unit	-
Compatible Drive Type	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD
Drive Interface	SATA 6Gb/s (backward compatible with SATA 3Gb/s)
Maximum Internal Raw Capacity	68 TB
Maximum Raw Capacity with Expansion Units	-
Hot Swappable Drive
Notes	For more information, please refer to compatibility matrix and hardware manual Maximum internal raw capacity= 16 TB drive x 4 + 3.84 TB drive x 1 Capacity may vary by RAID types
External Port
USB 2.0 Port	-
USB 3.0 Port	5 (Front: 1, Rear: 4)
HDMI Port	1
Others	-
Notes	-
Connectivity Port
{0}GbE RJ45 LAN Port	4 (Onboard)
{0}GbE RJ45 LAN Port	2 (Option: THBE10R2)
{0}GbE SFP+ LAN Port	2 (Option: XN-E1002)
Thunderbolt 3	2 (Option: XN-TB302)
{0}Gb SFP+ Fibre Channel	-
Notes	For more information, please refer to accessory book Please refer to the section below for expansion slot specification
Expansion Port
12Gb/s SAS Wide Port	-
Notes	-
PCIe Expansion
Gen3x8 Slot	1
Gen3x4 Slot	-
Notes	For more information, please refer to hardware manual
Host Card Expansion
Gen3x8 Slot	-
Gen2x4 Slot	-
Notes	-
Appearance
Dimension (H x W x D) (mm)	177 x 190 x 235
Chassis Form Factor	Tower 4+1 Bay
Net Weight (kg)	3.6
Gross Weight (kg)	4
Notes	-
Memory Protection
Cache-to-Flash Module	-
Battery Backup Module + Flash Module	-
Notes	-
Others
System Fan	12am x 120mm x 1 pcs
Replaceable System Fan	-
Power Recovery
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter	FLEX ATX 200W
Redundant Power Supply	-
AC Input Power Voltage	100V-240V
Power Frequency	50-60 Hz, Single Phase
Power Consumption	-
British Thermal Unit	-
LCM Support
Notes	-
Environment Temperature
Operating Temperature	0 to 40°C
Storage Temperature	-10°C to 50°C
Operating Relative Humidity	20% to 80% non-condensing
Non-operating Relative Humidity	10% to 90%
Notes	-
Certification
Certifications	CE FCC BSMI VCCI RCM SASO EAC
Notes	-
Warranty
Standard Warranty	{0} years
Notes	-

Operating System	64bit embedded Linux
Unified Storage Server	NAS application server (Gigabit/10GbE NIC) iSCSI storage (Gigabit/10GbE NIC) Fibre Channel storage (16Gb)
File Server	File sharing across Windows/Mac/Linux/UNIX and centralized management
FTP Server	Supports data access from remote location via FTP Bandwidth Control Connection control FTP with SSL/ TLS (explicit) mode FXP supported Passive FTP port range control
Backup Server	Snapshot and Replication Block-Level Snapshot and Replication Schedule and manually taking Snapshot Snapshot retention policy Snapshot Single file restore Snapshot lock XMirror (Multi-sites Volume and folder backup and synchronization) Public Cloud backup: Alibaba Cloud OSS, HiCloud S3, Amazon S3 and S3 compatible Public Cloud synchronization: Google Drive, Microsoft OneDrive, Dropbox Time machine Backup server External storage device backup 3rd party backup software support: Acronis True Image, CA BrightStor ARCserveBackup,EMC Retrospect, Symantec Backup Exec,LaCie Silverkeeper
Operating System	Linux-embedded system
Connection	IPv4, IPv6
Networking	VLAN Link aggregation (support 11 bonding modes) Multi-IP settings Gigabit Jumbo Frame
File System	ZFS file system
Supported Operating Systems	Windows Mac OS X Linux (2.6 or later) and UNIX
Storage Management	Single disk, RAID 0, 1, 5, 6, Z3, 10, 50, 60 and JBOD Global and Dedicated spare disk Disk management Disk S.M.A.R.T check Instant RAID RAID Fast Rebuild Multi-pool and volume management Storage capacity management Pool and Volume thread hole notification Online Pool expansion and migration Online volume expansion Build in iSCSI initiator and Target External storage device management Pool Encryption Support Disk cache Data Scrubbing SSD Read and Write cache Deduplication (volume and LUN) Snapshot (folder and LUN) Compression (volume and LUN) Thin Provision for LUN Self-encryption Drive (SED) pool level protection
User Management	Local / domain user and group management Local / domain application privilege User quota for local and domain user Home folder Windows AD and LDAP support Trust domain and support up to 200,000 domain user
Folder Management	Advanced ACL Windows ACL Hide shared folder on Windows network Unicode support WORM (Write Once Read Many protection) Folder usage threshold notification Folder quota File retention
System Tool	NTP time settings Notification: Email alert (SMTP authentication), syslog, and SNMP System firmware update Back up, restore, reset system settings Import system configuration Smart fan IP access control Policy-based unauthorized IP blocking Secure remote login by SSH connection Connection list management SNMP UPS support Network recycle bin Import SSL certificate Real-time Resource (CPU, Memory, Storage, Pool, Process)/ HardwaService/ Network resource monitor
Power Management	Power schedule Wake on LAN UPS settings Recover from power outage
System Optimization Settings	Service binding User application mode
Log	System log System connection and data transfer log
Multilingual Support	Chinese (Traditional & Simplified), English, French, German, Italian, Japanese, Korean, Russian, Polish
File Manager	File preview Embedded file player Filter Mount Cloud (Google Drive, OneDrive, Dropbox) ISO image mount CIFS, FTP, SFTP and WebDAV client Share link Team folder sharing Publish to facebook, twitter, weibo Media library Media streaming Online doc preview and editing Transcoding (online/offline), compression
Service	Data service: CIFS, AFP, NFS, FTP Block storage: iSCSI, Fibre Channel Backup service: Rsync Discover service: Bonjour
Virtualization	Windows: Hyper-V, storage space VMware: VMware 6.7 ready, VAAI, SRM Citrix: Citrix 7.0 ready
Multi-Browser Support	Internet Explorer Safari Firefox Google Chrome
Utility	XFinder Web Finder XReplicator
Notes	-
