XCubeNAS

XN7008R

CPU

Intel® Core™i3 3.9GHz Dual-Core Processor

RAM

8GB DDR4 U-DIMM (Max 64GB)

Hybrid Storage

Innovative N+6 Drive Tray Design

Flexible PCIe Expansion

Support 12Gb/s SAS Adapter Card

Easy File Access with Quick Connection

Web Finder

No need to install any applications, you can easily find your XCubeNAS.

Find your NAS

XFinder

XFinder is a desktop utility that searches for QSAN XCubeNAS devices in the local area network.

Find your NAS

Best Enterprise-Level Encryption Solution for Entry Enterprise and SMB

SED

Support self-encrypting drive technology

Smart Snapshot Retention

More protection but less resources

Rsync

Data copies can be distributed to your trusted storage locations through real-time remote backup.

AES256 Encryption

Pool encryption fulfill military regulations

Quota

Effective management, optimize allocating

Storage for Virtualization

Compatible with virtualization standard for VMware® vSphere™, Veeam™, Microsoft® Hyper-V.

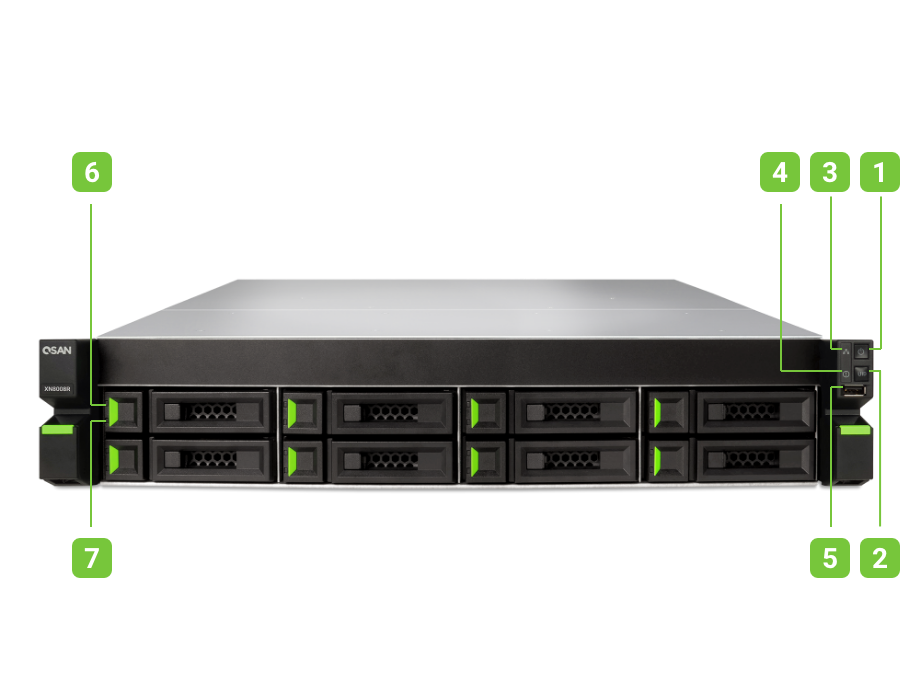

Power Button/LED Indicator for Power Status Unique Identifier (UID) Button/LED Indicator System Access LED Indicator System Status LED Indicator USB 2.0 Port Disk Drive Power LED Indicator Disk Drive Status LED Indicator Power Supply Unit – Power Port Power Supply Unit – PSU Indicator and Beep Off Button SATA SSD Slot NVMe SSD Slot Unique Identifier (UID) LED Indicator Mute Button Reset Button Console Port Gigabit LAN Port USB 3.0 Port Additional PCIe Slot for Expansion (Gen3 x 8) Additional PCIe Slot for Expansion (Gen3 x 4) HDMI Port

Hardware Specifications

Architecture All-in-one
Storage OS QSM Specification Details
CPU
Processor Intel® Core™ i3
CPU Architecture 64-bit
CPU Frequency Dual-Core 3.9GHz
Memory
System Flash 8GB USB DOM
Memory Module Pre-installed 8GB DDR4 U-DIMM
Total Memory Slots 4
Memory Expandable up to 64 GB
Notes -
Storage
Drive Bays

3.5" Slot x 8

2.5" Slot x 6

Maximum Drive Bays with Expansion Unit 424
Compatible Drive Type

3.5" SATA HDD

2.5" SATA HDD

2.5" SATA SSD

2.5" NVMe SSD

Drive Interface

SATA 6Gb/s
(backward compatible with SATA 3Gb/s)

Maximum Internal Raw Capacity 344.32TB
Maximum Raw Capacity with Expansion Units 8,504.32TB
Hot Swappable Drive
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • 2.5  slots including SATA SSD drive x 4 and NVMe SSD drive x 2
  • Maximum internal raw capacity= 16 TB drive x 8 + 3.84 TB drive x 4 + 3.84TB drive x 2
  • Capacity may vary by RAID types
External Port
USB 2.0 Port 1 (Front)
USB 3.0 Port 4 (Rear)
HDMI Port 1
Others Console Port x1
Notes -
Connectivity Port
{0}GbE RJ45 LAN Port 4 (Onboard)
{0}GbE RJ45 LAN Port 2 (Option)
{0}GbE SFP+ LAN Port 2 (Option)
Thunderbolt 3 2 (Option)
{0}Gb SFP+ Fibre Channel -
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification

Expansion Port
12Gb/s SAS Wide Port 2 (Option)
Notes For more information, please refer to accessory book
PCIe Expansion
Gen3x8 Slot 1
Gen3x4 Slot 1
Notes For more information, please refer to hardware manual
Host Card Expansion
Gen3x8 Slot -
Gen2x4 Slot -
Notes -
Appearance
Dimension (H x W x D) (mm) 88.5 x 438 x 510
Chassis Form Factor 19  Rackmount 2U 8+6 Bay
Net Weight (kg) 13.5
Gross Weight (kg) 14.9
Notes -
Memory Protection
Cache-to-Flash Module -
Battery Backup Module + Flash Module -
Notes -
Others
System Fan 60mm x 60mm x 3 pcs
40mm x 40mm x 1 pcs
Replaceable System Fan
Power Recovery
Scheduled Power On/Off
Wake on LAN/WAN
Power Supply Unit / Adapter 250W x2
Redundant Power Supply
AC Input Power Voltage 100V-240V
Power Frequency 50-60 Hz, Single Phase
Power Consumption 263 W (Access)
122 W (HDD Hibernation)
British Thermal Unit 895 BTU/hr (Access)
417 BTU/hr (HDD Hibernation)
LCM Support
Notes -
Environment Temperature
Operating Temperature 0 to 40°C
Storage Temperature -10°C to 50°C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 10% to 90%
Notes -
Certification
Certifications

CE

FCC

BSMI

VCCI

RCM

SASO

EAC

Notes -
Warranty
Standard Warranty {0} years
Notes -
