XCubeNAS

XN8012S

XN8012S

CPU

Intel®Xeon® 64-bit Quad-Core

RAM

8GB DDR4 ECC DIMM (Max 128GB)

Network

Built-in 10GbE solution

Flexible PCIe Expansion

Support 12Gb/s SAS Adapter Card

Easy File Access with Quick Connection

Web Finder

No need to install any applications, you can easily find your XCubeNAS.

Find your NAS

XFinder

XFinder is a desktop utility that searches for QSAN XCubeNAS devices in the local area network.

Find your NAS
Web Finder
XFinder

Ultra-high Performance and Virtualization Ready

snapshotrecovery

Snapshot Single File Recovery

Better control data versions and execute point-in-time recovery on folders and LUNs.

thinprovision

Thin Provision

Space resources are dynamically distributed to the most demanding.

autotiering

Auto-Tiering

Increase the performance of your business-related applications by using auto-tiering; without crippling your budget.

deployment

Depolyment

With the simple, clear and intuitive interface design makes the NAS easier and more pleasant for everyone.

virtualization

Storage for Virtualization

Compatible with virtualization standard for VMware® vSphere™,Veeam™,Microsoft® Hyper-V.

KVM

KVM

The built-in hypervisor manager provides a simple and quick way to deploy virtual resources into your infrastructure.

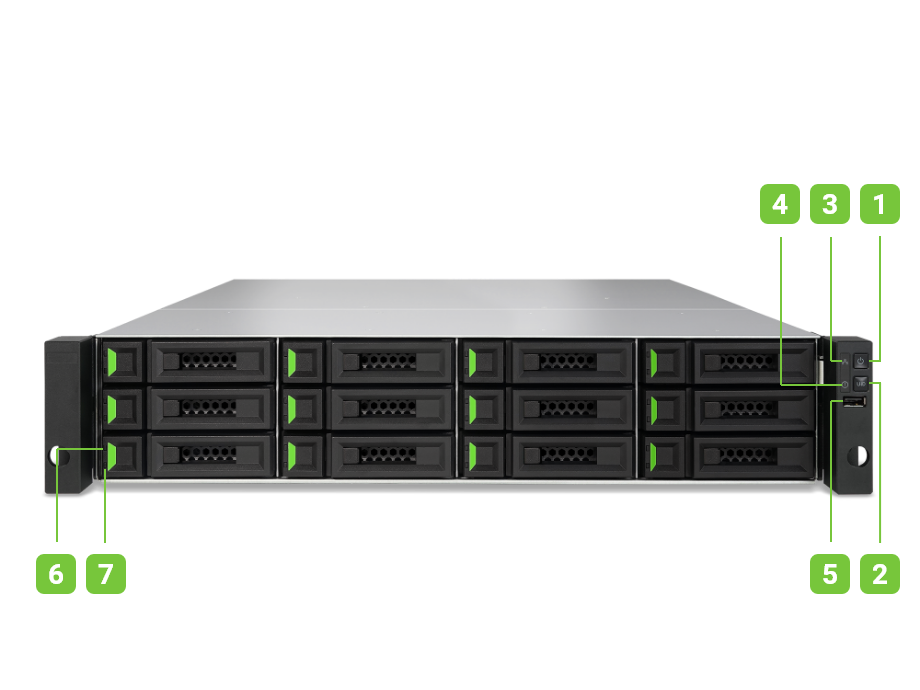

XN8012S_Front

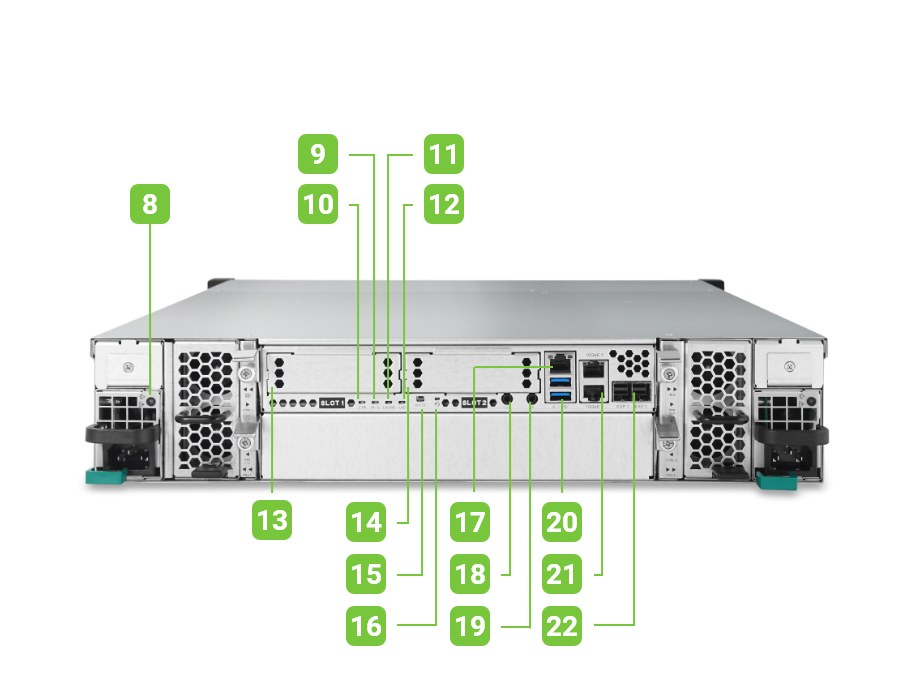

XN8012S_Back
Enclosure Power Button / LED UID Button / LED Enclosure Access LED Enclosure Status LED USB Port Disk Drive Power LED Disk Drive Status LED Power Supply Unit – PSU Indicator and Beep Off Button Controller Status LED Master / Slave LED (only for dual controllers) Dirty Cache LED UID (Unique Identifier) LED Host Card Slot 1 (host card is an optional part) Host Card Slot 2 (host card is an optional part) Buzzer Mute Button Reset to Factory Default Button Management Port Console Port Service Port USB Port 10GbE iSCSI Port 12Gb/s SAS Wide Port

Hardware Specifications

ArchitectureAll-in-one
Storage OSQSM Specification Details
CPU
ProcessorIntel®Xeon®
CPU Architecture64-bit
CPU FrequencyQuad-Core (8-core processor models are also available)
Memory
System Flash8GB USB DOM
Memory Module Pre-installed8GB DDR4 ECC DIMM
Total Memory Slots4
Memory Expandable up to128GB
Notes-
Storage
Drive Bays

3.5" Slot x 12

Maximum Drive Bays with Expansion Unit420
Compatible Drive Type

3.5" SAS HDD / SAS SED HDD

3.5" NL-SAS HDD / NL-SAS SED HDD

2.5" SAS SSD / SAS SED SSD

2.5" SATA SSD / SATA SED SSD (*)

2.5" SAS HDD / SAS SED HDD

2.5" NL-SAS HDD / NL-SAS SED HDD

Drive Interface

SATA 6Gb/s (backward compatible with SATA 3Gb/s)

Maximum Internal Raw Capacity216TB
Maximum Raw Capacity with Expansion Units7,560TB
Hot Swappable Drive
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum Internal Raw Capacity = 18TB drive x 12
  • Capacity may vary by RAID types
External Port
USB 2.0 Port1 (Front)
USB 3.0 Port-
HDMI Port-
OthersUPS Port x 1
Console Port x 1
Notes-
Connectivity Port
{0}GbE RJ45 LAN Port1 (Onboard Management Port)
{0}GbE RJ45 LAN Port2 (Onboard)
2 iSCSI (Option: HQ-10G2T)
{0}GbE SFP+ LAN Port4 iSCSI (Option: HQ-10G4S2)
Thunderbolt 3-
{0}Gb SFP+ Fibre Channel-
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification

Expansion Port
12Gb/s SAS Wide Port2 (Onboard)
Notes-
PCIe Expansion
Gen3x8 Slot-
Gen3x4 Slot-
Notes-
Host Card Expansion
Gen3x8 Slot1
Gen2x4 Slot1
NotesGen2x4 slot provides 20Gb bandwidth
Appearance
Dimension (H x W x D) (mm)88 x 438 x 515
Chassis Form Factor19" Rackmount 2U 12 Bay
Net Weight (kg)16.4
Gross Weight (kg)18.8
Notes-
Memory Protection
Cache-to-Flash Module-
Battery Backup Module + Flash Module-
Notes-
Others
System Fan4 pcs
Replaceable System Fan
Power Recovery
Scheduled Power On/Off-
Wake on LAN/WAN
Power Supply Unit / Adapter770W/850W x 2 (80 PLUS Platinum)
Redundant Power Supply
AC Input Power Voltage100V-240V
Power Frequency50-60 Hz, Single Phase
Power Consumption407W
British Thermal Unit1,388BTU
LCM Support
Notes-
Environment Temperature
Operating Temperature0 to 40°C
Storage Temperature-10°C to 50°C
Operating Relative Humidity20% to 80% non-condensing
Non-operating Relative Humidity10% to 90%
Notes-
Certification
Certifications

CE

Notes-
Warranty
Standard Warranty{0} years
Notes-
