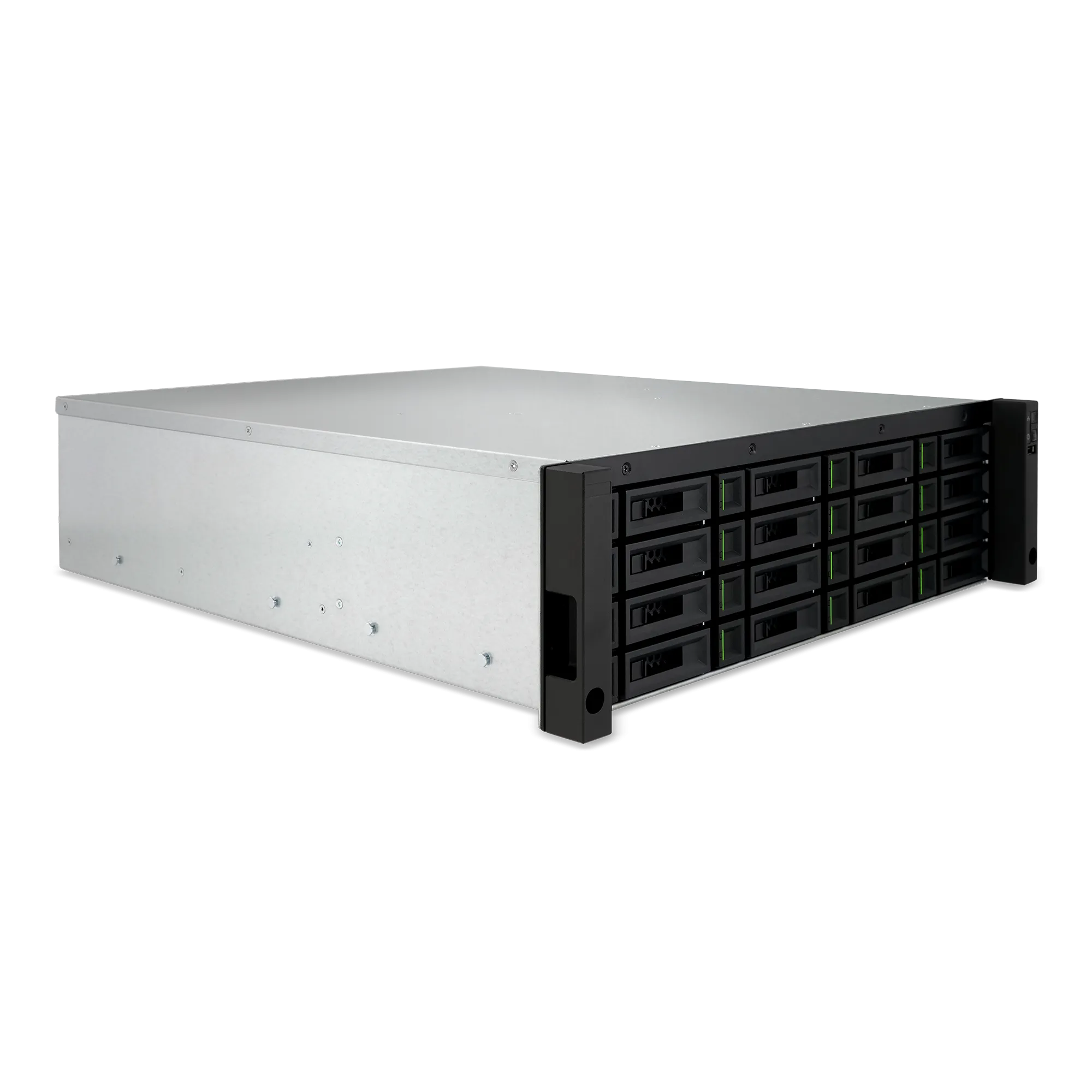

XCubeNXT

XN8016D

CPU

Intel ® Xeon ® Quad-Core Processor

RAM

16GB DDR4 ECC DIMM (Max 128GB)

Network

Built-in 10GbE solution

Easy Maintenance

Modularized Hardware Platform Design

Easy File Access with Quick Connection

No need to install any applications, you can easily find your XCubeNXT.

Find your NAS

XFinder

XFinder is a desktop utility that searches for QSAN XCubeNXT devices in the local area network.

Find your NAS

SMEs Budget Midrange Value

Scalable

Ultra-high scalability. Make cost-effective planning in the initial stage of expansion. No need to stop any services.

Integrated

Lightly integrated with advanced technology. Optimal combination of performance and cost consideration.

Mature

More than 10 years' experience in Mid-range storage business. Continues to provide reliable storage solution and service to customers.

Performance

Provides many tools to accelerate application execution efficiency

Laborless

Entire installation process within five minutes. , Easily monitor the entire QSAN product with one system with XInsight.

Enterprise-Grade

Secured, centralized repository and storage efficiency for business information.

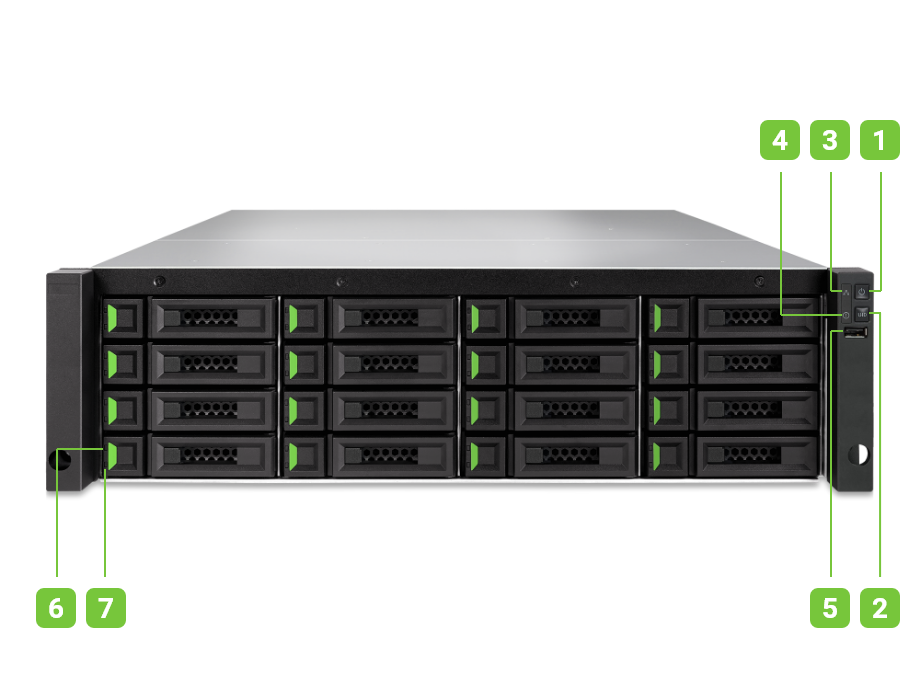

Power Button/LED Indicator for Power Status Unique Identifier (UID) Button/LED Indicator System Access LED Indicator System Status LED Indicator USB 2.0 Port Disk Drive Power LED Indicator Disk Drive Status LED Indicator Power Supply Unit – PSU Indicator and Beep Off Button Additional Host Card Expansion Slot Controller Status LED Master/Slave LED Unique Identifier (UID) LED Indicator Mute Button Reset Button Console Port Service Port Gigabit LAN Port 12Gb/s SAS Wide Port 10GbE LAN Port USB 3.0 Port

Hardware Specifications

CPU
Architecture	Active-Active dual-controller
Storage OS	QSM Specification Details
Processor	Intel® Xeon®
CPU Architecture	64-bit
CPU Frequency	Quad-Core (Also support 8 core model)
Memory
System Flash	16GB USB DOM
Memory Module Pre-installed	16GB DDR4 ECC DIMM (per controller)
Total Memory Slots	4 (per controller)
Memory Expandable up to	128GB (per controller)
Notes	-
Storage
Drive Bays	3.5" Slot x 16
Maximum Drive Bays with Expansion Unit	424
Compatible Drive Type	3.5" SAS HDD 3.5" SAS SED HDD 3.5" NL-SAS HDD 3.5" NL-SAS SED HDD 2.5" SAS SSD 2.5" SAS SED SSD 2.5" SATA SSD() 2.5" SATA SED SSD() 2.5" SAS HDD 2.5" SAS SED HDD 2.5" NL-SAS HDD 2.5" NL-SAS SED HDD
Drive Interface	SAS 12Gb/s and SATA 6Gb/s (backward compatible with SAS 6Gb/s and SATA 3Gb/s)
Maximum Internal Raw Capacity	288TB
Maximum Raw Capacity with Expansion Units	7632TB
Hot Swappable Drive
Notes	For more information, please refer to compatibility matrix and hardware manual Maximum internal raw capacity= 16 TB drive x 16 Capacity may vary by RAID types In dual-controller system, 2.5”SATA HHD need 6G MUX board
External Port
USB 2.0 Port	1 (Front)
USB 3.0 Port	2 (Rear)
HDMI Port	-
Others	UPS Port x1 Controller port x 1
Notes	-
Connectivity Port
{0}GbE RJ45 LAN Port	1 (Onboard)
{0}GbE RJ45 LAN Port	2 (Onboard) 2 iSCSI (Option: HQ-10G2T)
{0}GbE SFP+ LAN Port	4 iSCSI (Option: HQ-10G4S2)
Thunderbolt 3	-
{0}GbE SFP28 LAN Port	2 iSCSI (Option: RHCE25P2)
{0}Gb SFP+ Fibre Channel	4 FCP (Option: HQ-16F4S2) 2 FCP (Option: HQ-16F2S2)
{0}Gb SFP28 Fibre Channel	2 FCP (Option: RHCF32P2)
Notes	For more information, please refer to accessory book Please refer to the section below for expansion slot specification RHCF32P2 Option card will be available soon, please contact us for more detail.
Expansion Port
12Gb/s SAS Wide Port	2 (Onboard)
Notes	-
PCIe Expansion
Gen3x8 Slot	-
Gen3x4 Slot	-
Notes	-
Host Card Expansion
Gen3x8 Slot	1
Gen2x4 Slot	1
Notes	Gen2x4 slot provides 20Gb bandwidth
Appearance
Dimension (H x W x D) (mm)	130.3 x 438 x 515
Chassis Form Factor	19" Rackmount 3U 16 Bay
Net Weight (kg)	22
Gross Weight (kg)	31.1
Notes	-
Memory Protection
Cache-to-Flash Module
Battery Backup Module + Flash Module	-
Notes	Does not need Battery Backup Module
Others
System Fan	4 pcs
Replaceable System Fan
Power Recovery
Scheduled Power On/Off	-
Wake on LAN/WAN
Power Supply Unit / Adapter	770W/850W x 2 (80 PLUS Platinum)
Redundant Power Supply
AC Input Power Voltage	100V-240V
Power Frequency	50-60 Hz, Single Phase
Power Consumption	534W
British Thermal Unit	1,822BTU
LCM Support
Notes	-
Environment Temperature
Operating Temperature	0 to 40°C
Storage Temperature	-10°C to 50°C
Operating Relative Humidity	20% to 80% non-condensing
Non-operating Relative Humidity	10% to 90%
Notes	-
Certification
Certifications	CE FCC CCC BSMI VCCI KCC
Notes	-
Warranty
Standard Warranty	{0} years
Notes	-

Operating System	64bit embedded Linux
Unified Storage Server	NAS application server (Gigabit/10GbE NIC) iSCSI storage (Gigabit/10GbE NIC) Fibre Channel storage (16Gb)
File Server	File sharing across Windows/Mac/Linux/UNIX and centralized management
FTP Server	Supports data access from remote location via FTP Bandwidth Control Connection control FTP with SSL/ TLS (explicit) mode FXP supported Passive FTP port range control
Backup Server	Snapshot and Replication Block-Level Snapshot and Replication Schedule and manually taking Snapshot Snapshot retention policy Snapshot Single file restore Snapshot lock XMirror (Multi-sites Volume and folder backup and synchronization) Public Cloud backup: Alibaba Cloud OSS, HiCloud S3, Amazon S3 and S3 compatible Public Cloud synchronization: Google Drive, Microsoft OneDrive, Dropbox Time machine Backup server External storage device backup 3rd party backup software support: Acronis True Image, CA BrightStor ARCserveBackup,EMC Retrospect, Symantec Backup Exec,LaCie Silverkeeper
Operating System	Linux-embedded system
Connection	IPv4, IPv6
Networking	VLAN Link aggregation (support 11 bonding modes) Multi-IP settings Gigabit Jumbo Frame
File System	ZFS file system
Supported Operating Systems	Windows Mac OS X Linux (2.6 or later) and UNIX
Storage Management	Single disk, RAID 0, 1, 5, 6, Z3, 10, 50, 60 and JBOD Global and Dedicated spare disk Disk management Disk S.M.A.R.T check Instant RAID RAID Fast Rebuild Multi-pool and volume management Storage capacity management Pool and Volume thread hole notification Online Pool expansion and migration Online volume expansion Build in iSCSI initiator and Target External storage device management Pool Encryption Support Disk cache Data Scrubbing SSD Read and Write cache Deduplication (volume and LUN) Snapshot (folder and LUN) Compression (volume and LUN) Thin Provision for LUN Self-encryption Drive (SED) pool level protection
User Management	Local / domain user and group management Local / domain application privilege User quota for local and domain user Home folder Windows AD and LDAP support Trust domain and support up to 200,000 domain user
Folder Management	Advanced ACL Windows ACL Hide shared folder on Windows network Unicode support WORM (Write Once Read Many protection) Folder usage threshold notification Folder quota File retention
System Tool	NTP time settings Notification: Email alert (SMTP authentication), syslog, and SNMP System firmware update Back up, restore, reset system settings Import system configuration Smart fan IP access control Policy-based unauthorized IP blocking Secure remote login by SSH connection Connection list management SNMP UPS support Network recycle bin Import SSL certificate Real-time Resource (CPU, Memory, Storage, Pool, Process)/ HardwaService/ Network resource monitor
Power Management	Power schedule Wake on LAN UPS settings Recover from power outage
System Optimization Settings	Service binding User application mode
Log	System log System connection and data transfer log
Multilingual Support	Chinese (Traditional & Simplified), English, French, German, Italian, Japanese, Korean, Russian, Polish
File Manager	File preview Embedded file player Filter Mount Cloud (Google Drive, OneDrive, Dropbox) ISO image mount CIFS, FTP, SFTP and WebDAV client Share link Team folder sharing Publish to facebook, twitter, weibo Media library Media streaming Online doc preview and editing Transcoding (online/offline), compression
Service	Data service: CIFS, AFP, NFS, FTP Block storage: iSCSI, Fibre Channel Backup service: Rsync Discover service: Bonjour
Virtualization	Windows: Hyper-V, storage space VMware: VMware 6.7 ready, VAAI, SRM Citrix: Citrix 7.0 ready
Multi-Browser Support	Internet Explorer Safari Firefox Google Chrome
Utility	XFinder Web Finder XReplicator VASA Provider
Notes	-

XN8016D

Balance Form Factor Unified Disk Storage

Easy File Access with Quick Connection

SMEs Budget Midrange Value

Hardware Specifications

QSM Specifications
