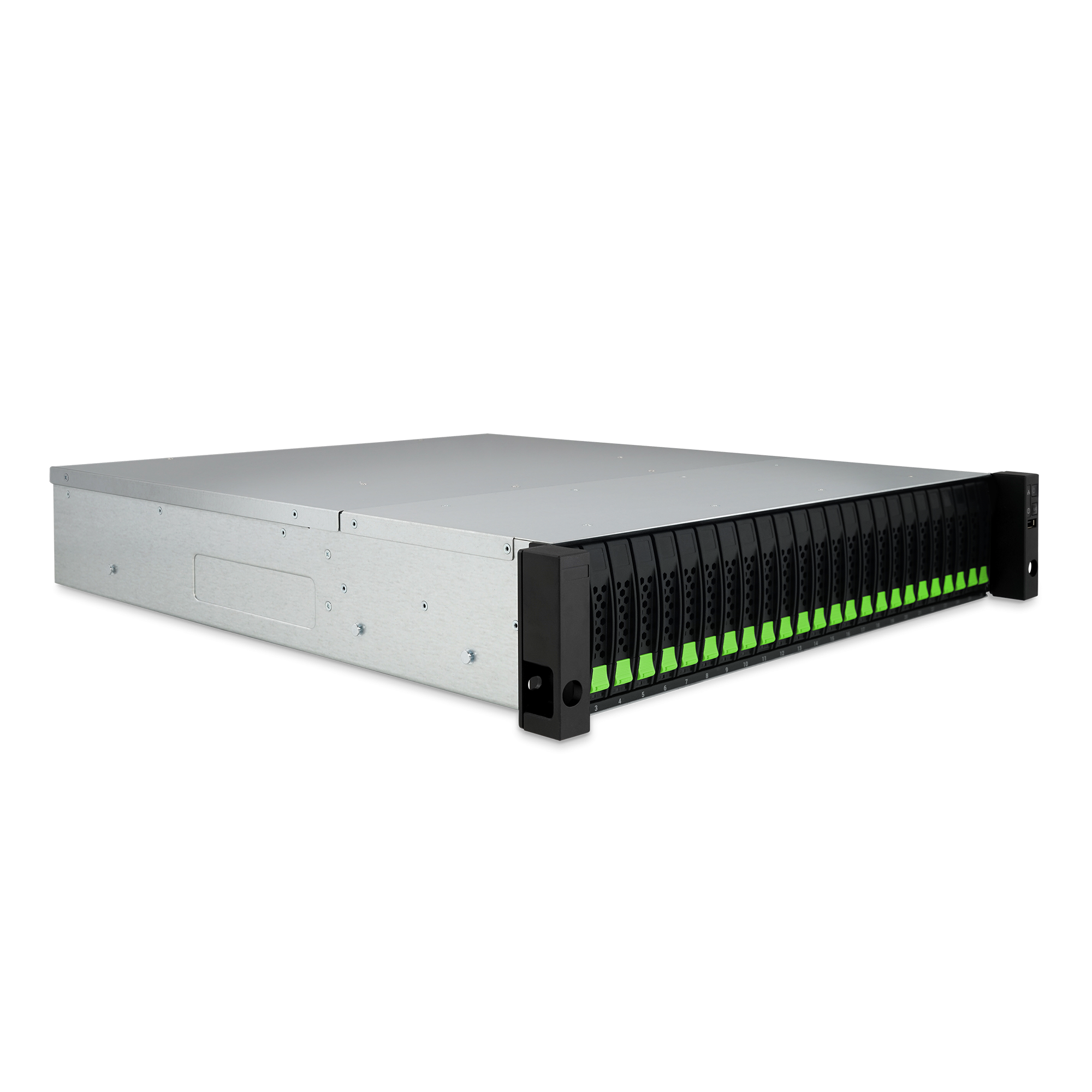

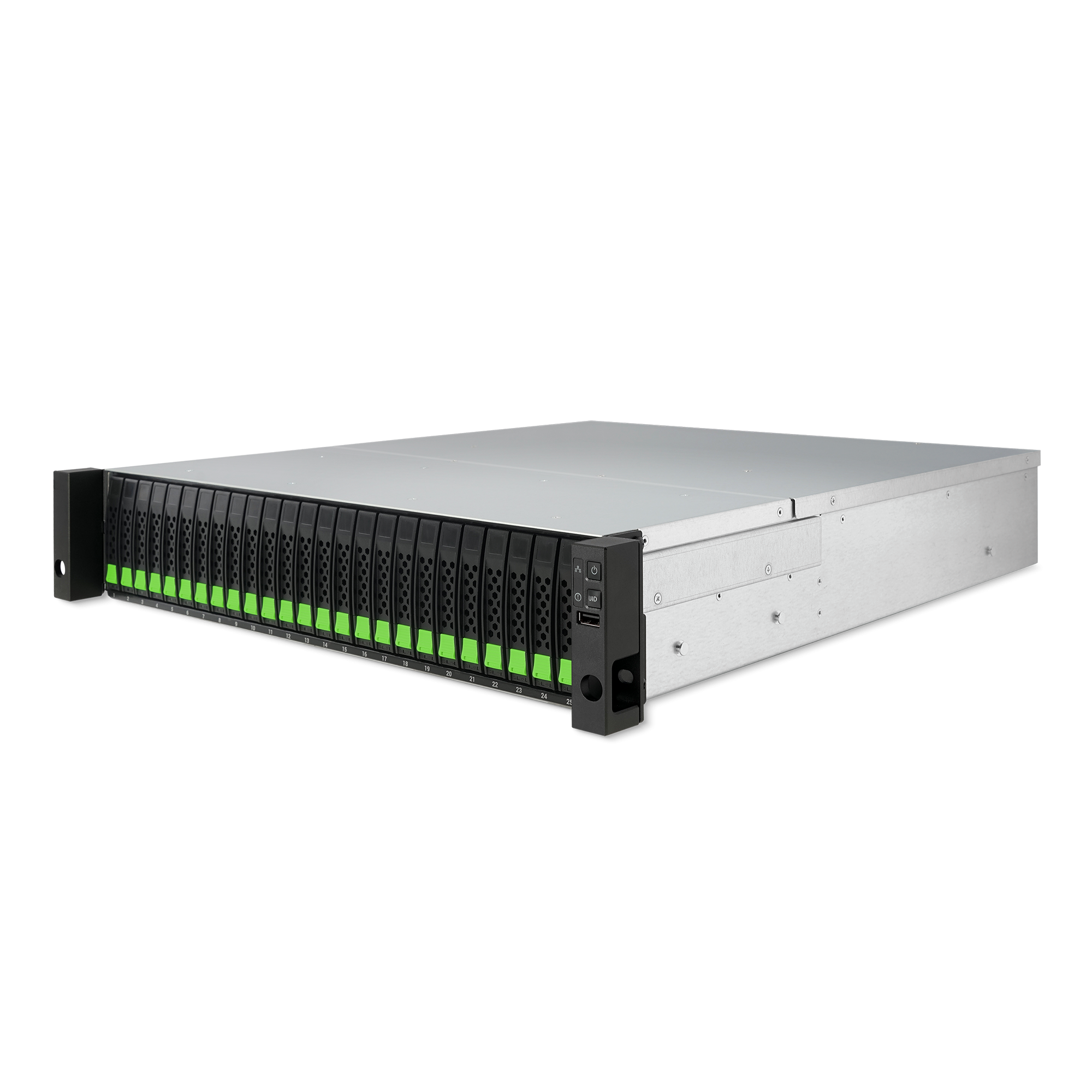

XCubeSAN

XS3226

CPU

Intel® Quad-Core Processor

RAM

4GB DDR4 ECC DIMM (Max 128GB)

Performance Density

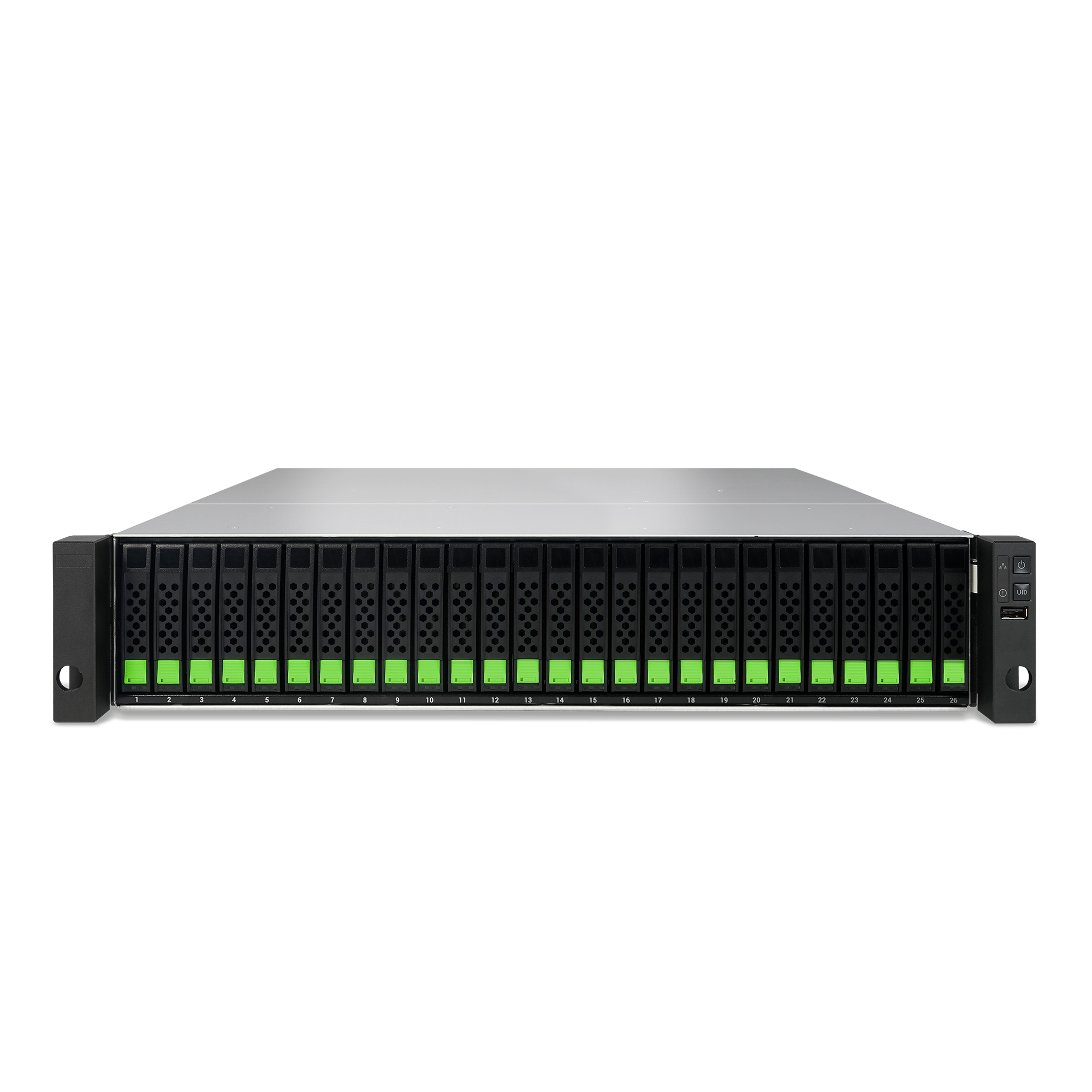

World's 1st 2U-26 Bay Design

Active-Active Architecture

Dual-Active Design

Easy File Access with Quick Connection

XFinder

XFinder is a desktop utility that searches for QSAN XCubeSAN devices in the local area network.

Find your SAN >

Liquid Crystal Monitor

Portable USB LCM (LCD Module) can help you identify management port IP address.

High Performance SAN System
for Enterprise Entry

Thin Provisioning (QThin)

Dynamic size just-in-time and just-enough.

SSD Cache (QCache)

Accelerate the applications data access time

Auto Tiering (QTiering)

Put the Right Data at the Right Place in the Right Time

Active-Active

Dual-Active Design

The XCubeSAN series features a Dual-Active controller architecture. Both controllers concurrently provide storage services in real time. Active-Active architecture doubles the available host bandwidth and cache-hit ratio which ensures there is no wasted resource in the system.

Fastest 12Gb SAS 3.0

Latest 12Gb SAS 3.0 Controller

12Gb SAS 3.0 is the latest and fastest drive interface available. It doubles the data transfer rate of SAS 2.0 (6Gb), while remaining backward compatible with 6Gb SAS 2.0 drives. The benefit is that you have the flexibility to purchase less expensive 6Gb SAS drives for initial installation or leverage investment of your existing 6Gb SAS drives and have a peace of mind knowing you can migrate to 12Gb SAS 3.0 by purchasing only new drives.

Cache-to-Flash

Reliable and Advanced Protection Mechanism

In the event of power loss, the I/O cache data stored in volatile memory will be lost. Cache-to-Flash memory protection function that will safely transfer the memory cache data to a non-volatile flash device for permanent preservation.

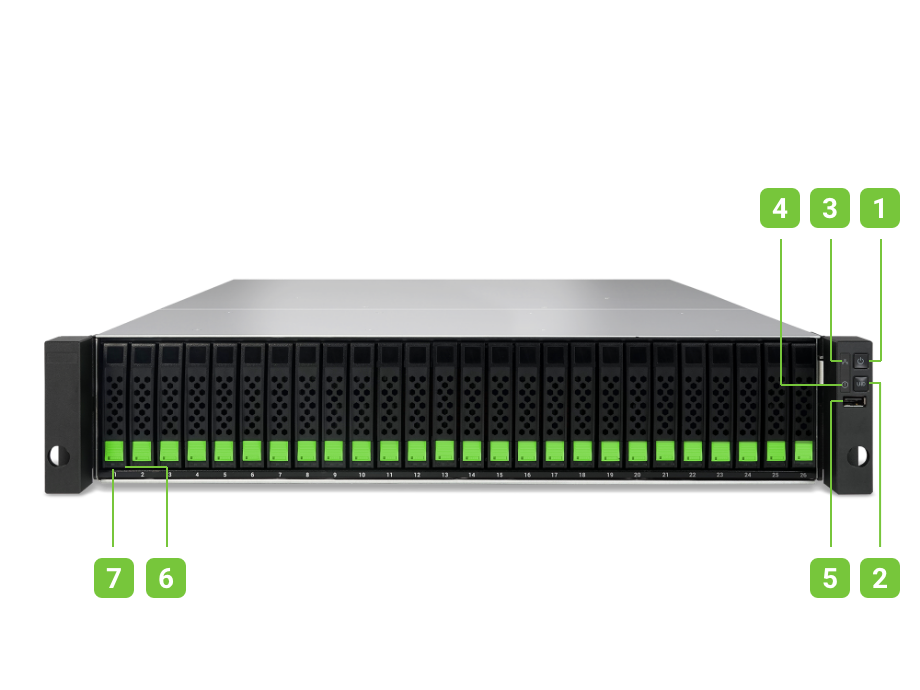

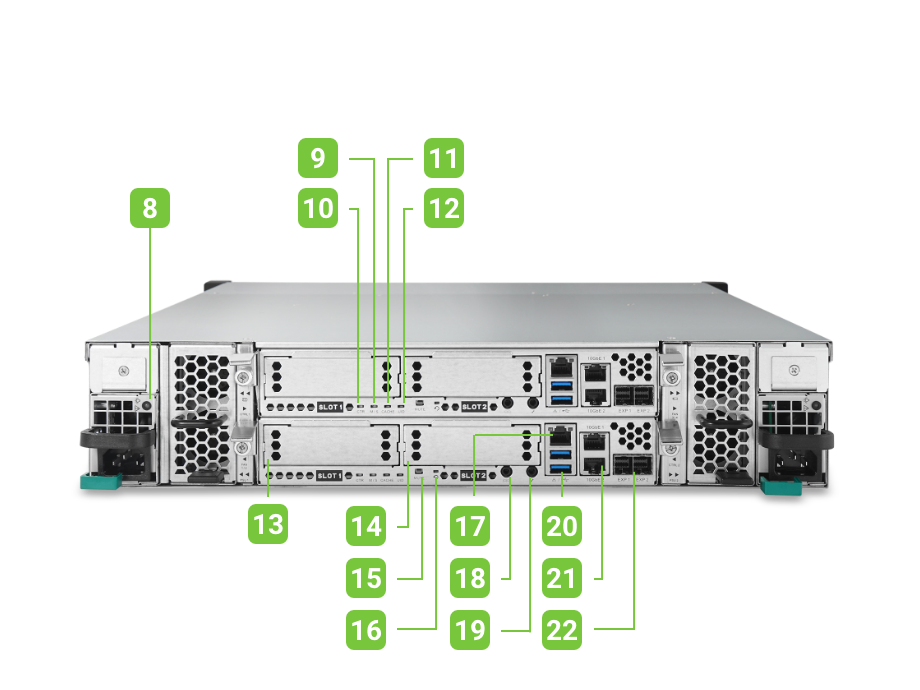

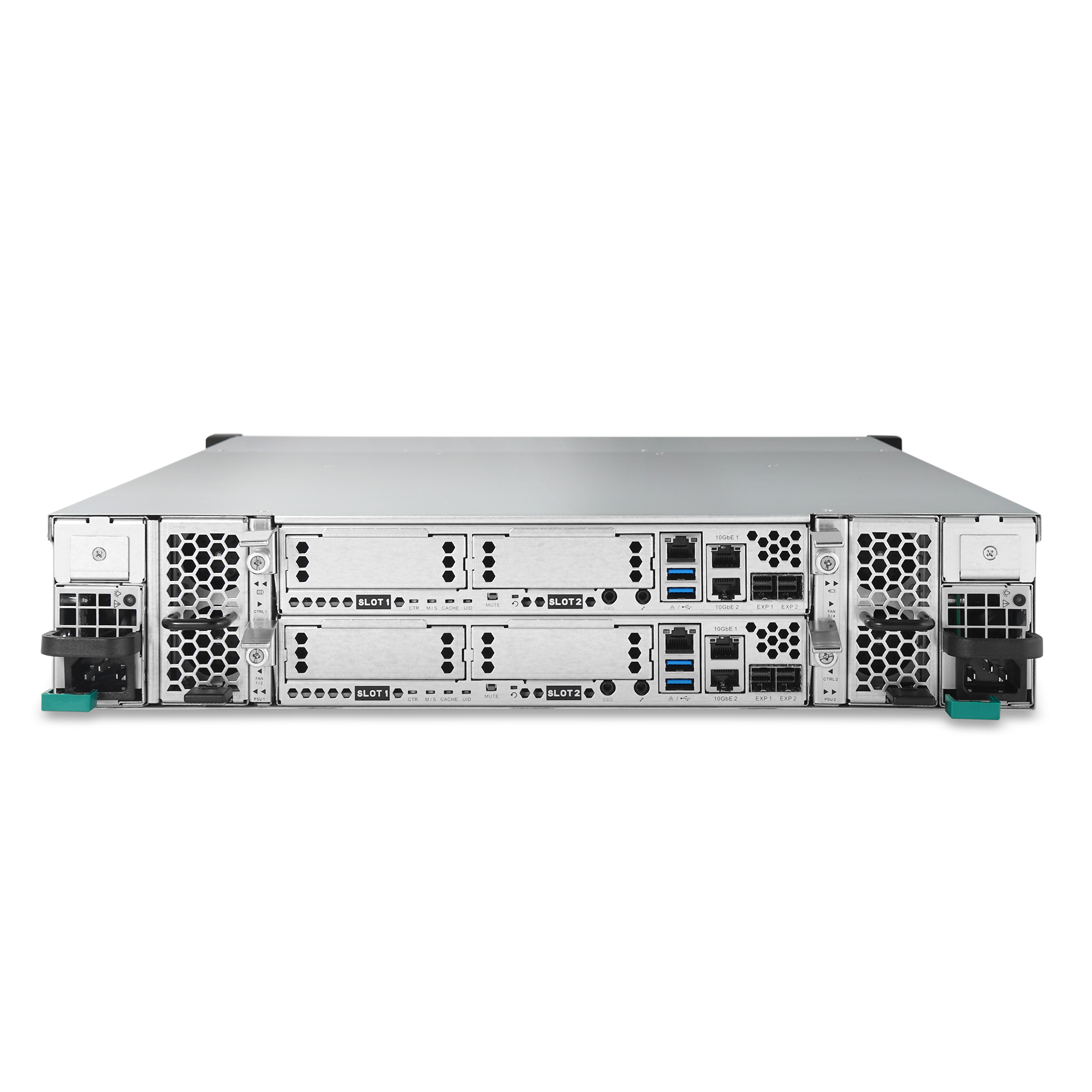

Enclosure Power Button / LED UID Button / LED Enclosure Access LED Enclosure Status LED USB Port Disk Drive Power LED Disk Drive Status LED Power Supply Unit – PSU Indicator and Beep Off Button Controller Status LED Master / Slave LED (only for dual controllers) Dirty Cache LED UID (Unique Identifier) LED Host Card Slot 1 (host card is an optional part) Host Card Slot 2 (host card is an optional part) Buzzer Mute Button Reset to Factory Default Button Management Port Console Port Service Port USB Port 10GbE iSCSI Port 12Gb/s SAS Wide Port

Hardware Specifications

CPU
Architecture	Dual (Active-Active)
Storage OS	SANOS 4 Specification Details
Processor	Intel®
CPU Architecture	64-bit
CPU Frequency	Quad-Core
Memory
System Flash	-
Memory Module Pre-installed	4GB DDR4 ECC DIMM
Total Memory Slots	4
Memory Expandable up to	128GB
Notes	Per Controller
Storage
Drive Bays	2.5" Slot x 26
Maximum Drive Bays with Expansion Unit	434(*)
Compatible Drive Type	2.5" SAS SSD / SAS SED SSD 2.5" SATA SSD / SATA SED SSD (*) 2.5" SAS HDD / SAS SED HDD 2.5" NL-SAS HDD / NL-SAS SED HDD
Drive Interface	SAS 12Gb/s
Maximum Internal Raw Capacity	399TB
Maximum Raw Capacity with Expansion Units	6,927TB(*)
Hot Swappable Drive
Notes	For more information, please refer to compatibility matrix and hardware manual Maximum Internal Raw Capacity = 15.36TB drive x 26 Capacity may vary by RAID types XCubeSAN Supports up to 626 drives when connects with specific DAS models. For more information, please contact us. 6Gb MUX board needed for 2.5" SATA drives in dual controller system
External Port
USB 2.0 Port	1 (Front)
USB 3.0 Port	-
HDMI Port	-
Others	UPS Port x 1 Console Port x 1
Notes	-
Connectivity Port
{0}GbE RJ45 LAN Port	1 (Onboard Management Port)
{0}GbE RJ45 LAN Port	2 (Onboard) 2 iSCSI (Option: HQ-10G2T)
{0}GbE SFP+ LAN Port	4 iSCSI (Option: HQ-10G4S2)
Thunderbolt 3	-
{0}Gb SFP+ Fibre Channel	4 (Option: HQ-16F4S2) 2 (Option: HQ-16F2S2)
Notes	For more information, please refer to accessory book Please refer to the section below for expansion slot specification
Expansion Port
12Gb/s SAS Wide Port	2 (Onboard)
Notes	-
PCIe Expansion
Gen3x8 Slot	-
Gen3x4 Slot	-
Notes	-
Host Card Expansion
Gen3x8 Slot	1
Gen2x4 Slot	1
Notes	Gen2x4 slot provides 20Gb bandwidth
Appearance
Dimension (H x W x D) (mm)	88 x 438 x 491
Chassis Form Factor	19" Rackmount 2U 26 Bay
Net Weight (kg)	16.3
Gross Weight (kg)	18.6
Notes	-
Memory Protection
Cache-to-Flash Module
Battery Backup Module + Flash Module
Notes	-
Others
System Fan	4 pcs
Replaceable System Fan
Power Recovery
Scheduled Power On/Off	-
Wake on LAN/WAN
Power Supply Unit / Adapter	770W/850W x 2 (80 PLUS Platinum)
Redundant Power Supply
AC Input Power Voltage	100V-240V
Power Frequency	50-60 Hz, Single Phase
Power Consumption	429W
British Thermal Unit	1,464BTU
LCM Support
Notes	-
Environment Temperature
Operating Temperature	0 to 40°C
Storage Temperature	-10°C to 50°C
Operating Relative Humidity	20% to 80% non-condensing
Non-operating Relative Humidity	10% to 90%
Notes	-
Certification
Certifications	CE FCC BSMI VCCI KCC
Notes	-
Warranty
Standard Warranty	{0} years Battery backup module : 1 year
Notes	-

Operating System	64bit embedded Linux
Storage Management	RAID level 0 ,1 ,0+1 ,3 ,5 ,6 ,10 ,30 ,50, 60, and N-way mirror RAID EE level 5EE, 6EE, 50EE, and 60EE Flexible storage pool ownership Thin Provisioning (QThin) with space reclamation SSD Cache (QCache) Auto Tiering (QTiering) Global, local, and dedicated hot spares Write-through and write-back cache policy Online disk roaming Spreading RAID disk drives across enclosures Background I/O priority setting Instant RAID volume availability Fast RAID rebuild Online storage pool expansion Online volume extension Online volume migration Auto volume rebuilding Instant volume restoration Online RAID level migration SED & ISE drive support Video editing mode for enhanced performance Disk drive health check and S.M.A.R.T. attributes Storage pool parity check and media scan for disk scrubbing SSD wear lifetime indicator Disk drive firmware batch update Volume QoS (Quality of Service) Advanced disk awareness
iSCSI Host Connectivity	Proven QSOE 2.0 optimization engine CHAP & mutual CHAP authentication SCSI-3 PR (Persistent Reservation for I/O fencing) support iSNS support VLAN (Virtual LAN) support Jumbo frame (9,000 bytes) support Up to 256 iSCSI targets Up to 512 hosts per controller Up to 1,024 sessions per controller
Fibre Channel Host Connectivity	Proven QSOE 2.0 optimization engine FCP-2 & FCP-3 support Auto detect link speed and topology Topology supports point-to-point³ and loop Up to 256 hosts per controller
High Availability	Dual-Active (Active/Active) SAN controllers Cache mirroring through NTB bus ALUA support Management port seamless failover Fault-tolerant and redundant modular components for SAN controller, PSU, FAN module, and dual port disk drive interface Dual-ported HDD tray connector Multipath I/O and load balancing support (MPIO, MC/S, Trunking, and LACP) Firmware update with zero system downtime
Security	Secured Web (HTTPS), SSH (Secure Shell) iSCSI Force Field to protect from mutant network attack iSCSI CHAP & mutual CHAP authentication SED & ISE drive support
Storage Efficiency	Thin Provisioning (QThin) with space reclamation Auto Tiering (QTiering)¹ with 3 levels of storage tiers
Networking	DHCP, Static IP, NTP, Trunking, LACP, VLAN, Jumbo frame (up to 9,000 bytes)
Advanced Data Protection	Snapshot (QSnap), block-level, differential backup Writeable snapshot support Manual or schedule tasks Up to 64 snapshots per volume Up to 64 volumes for snapshot Up to 4,096 snapshots per system Remote Replication (QReplica) Asynchronous, block-level, differential backup based on snapshot technology Traffic shaping for dynamic bandwidth controller Manual or schedule tasks Auto rollback to previous version if current replication fails Up to 32 schedule tasks per controller Volume clone for local replication Configurable N-way mirroring Integration with Windows VSS (Volume Shadow Copy Service) Instant volume restoration Cache-to-Flash memory protection M.2 flash module Power module: BBM (Battery Backup Module) or SCM (Super Capacitor Module) Support USB UPS and network UPS with SNMP management
Virtualization Certification	Server Virtualization & Clustering Latest VMware vSphere certification VMware VAAI for iSCSI &, FC Windows Server 2016, 2012 R2 Hyper-V certification Microsoft ODX Latest Citrix XenServer certification
Easy Management	USB LCM, serial console support, online firmware update Intuitive Web management UI, secured web (HTTPS), SSH (Secured Shell), LED indicators S.E.S. support, S.M.A.R.T. support, Wake-on-LAN, and Wake-on-SAS RESTful API support
Green & Energy Efficiency	80 PLUS Platinum power supply Wake-on-LAN to turn on or wake up the system only when necessary Auto disk spin-down
Host Operating Systems Support	Windows Server 2008, 2008 R2, 2012, 2012 R2, 2016 SLES 10, 11, 12 RHEL 5, 6, 7 CentOS 6, 7 Solaris 10, 11 FreeBSD 9, 10 Mac OS X 10.11 or later
Notes	The function is optional and is not included in the default package. The feature is based on RAID level migration of disk groups on the fly in thick provisioning pools. 16Gb Fibre Channel only supports Point-to-Point topology.
