XCubeSAN

XS3312

Entry, Cost Effectively, Pay As You Grow

CPU

Intel® Xeon® 4-core Processor​

RAM

16 GB DDR4 ECC DIMM​ (up to 512 GB)​

Fastest Interface​

12 Gb SAS 3.0 Controller​

Versatility Performance

Dual-Active Design

Entry to Faster SAN Cost Effectively and "Pay as You Grow" Flexibility​

The XCubeSAN 3312 (3.5” 2U 12-bay) is a compact hybrid flash storage system with a low acquisition cost. In the face of rapid, unpredictable growth of SMB, the flexibility to pay as you grow makes the XS3312 an excellent solution. Outstanding performance is ideal for modern enterprise applications such as virtualization, media editing, large scale surveillance, and backup.​​

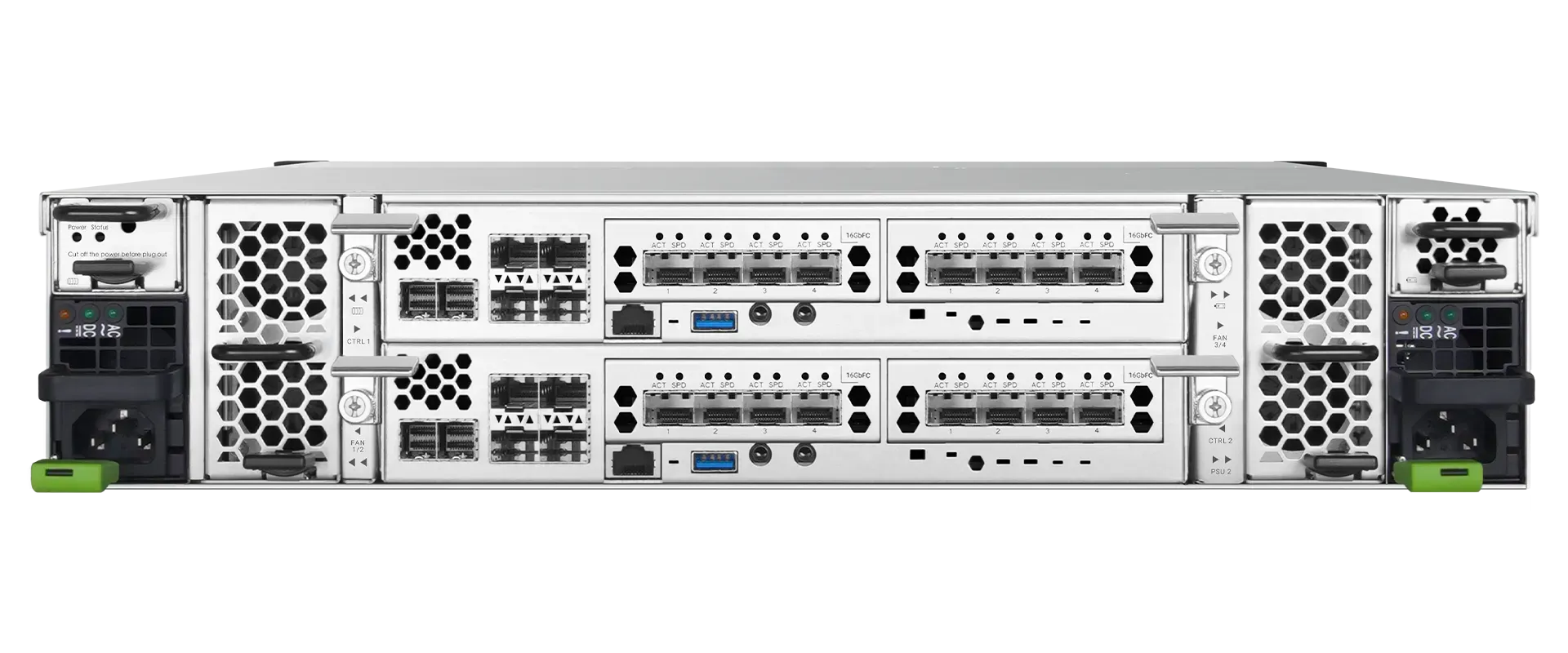

XF3312 Rear Side Magnifying

XEVO Data Management System

XEVO, a flash-based storage management system, minimizes the learning curve and eases maintenance through an intuitive GUI. Data can be accessed in 5 minutes after installation. XEVO‘s core technology provides the excellence, flexibility, and intelligence needed to simplify all content for a hybrid storage system.​​​

Why QSAN XCubeSAN Arrays?​

Outstanding Performance​

Excellent performance with 12.8 GB/s and 1.3M IOPS, outstanding scale-up capability up to 16.7 PB.

Dependable Data Experience​

99.9999% high availability design with no single point of failure, cache-to-flash to protect cache data in power outage.​​

Versatile Connectivity​

Each controller with built-in 4-port 10 GbE (SFP+) and maximum 12 host ports allows​ direct connection to multiple hosts without switches.​​

Modern Simplicity​

Simplify storage management with the intuitive and powerful XEVO storage manager interface.​​

Enclosure Status LED Enclosure Access LED Enclosure Power Button / LED Disk Drive Status LED Indicator Disk Drive Power LED Indicator USB Port Unique Identifier (UID) Button / LED Indicator Power Supply Unit Master / Slave LED (only for dual controllers) Controller Status LED Dirty Cache LED UID (Unique Identifier) LED 12 Gb/s SAS Wide Port 10 GbE iSCSI (SFP+) Port Management Port Host Card Slot 1 (host card is an optional part) Service Port Console Port USB Port Host Card Slot 2 (host card is an optional part) Reset to Factory Default Button Buzzer Mute Button

System Specifications

Architecture XS3312D: Dual-active controller
XS3312S: Single-upgradeable controller
Storage OS XEVO 2 Specification Details
CPU
Processor Intel® Xeon® 64-bit 4-core
Memory
Memory Module Pre-installed 8 GB DDR4 ECC DIMM (per controller)
Total Memory Slots 4 (per controller)
Memory Expandable up to 256 GB (per controller)
Storage
Drive Bays

3.5" Slot x 12
Maximum Drive Bays with Expansion Unit 492
Compatible Drive Type

3.5" & 2.5" SAS, NL-SAS, SED HDD

3.5" & 2.5" SATA(*) HDD

2.5" SAS, SATA(*), SED SSD
Drive Interface

SAS 12 Gb/s, SATA 6 Gb/s(*)
Maximum Internal Raw Capacity 264 TB (calculate 22 TB HDD)
Maximum Raw Capacity with Expansion Units 10,824 TB (calculate 22 TB HDD)
Hot Swappable Drive
Notes

(*) SATA drives only work with single controller systems
Connectivity Port
PCIe Expansion (Gen 3x8 Slot) x 2
{0} GbE RJ45 LAN Port 1 (onboard management port per controller)
{0} GbE SFP+ LAN Port 4 (onboard per controller) / 4 (option)
{0} GbE RJ45 LAN Port 2 (option) / 4 (option)
{0} GbE SFP28 LAN Port 2 (option) / 4 (option)
{0} Gb SFP+ Fibre Channel 2 (option) / 4 (option)
{0} Gb SFP28 Fibre Channel 2 (option)
Expansion and External port
12 Gb/s SAS Wide Port 2 (onboard per controller)
USB Port 1 (front) / 2 (rear)
Others Console Port x 1, Service Port (UPS) x 1
Software Specification
Storage OS XEVO
RAID Type 0 / 1 / 3 / 5 / 6 / 10 / 30 / 50 / 60 / 5EE / 6EE / 50EE / 60EE / N-way mirror
Storage Efficiency Thin provisioning
Software Acceleration SSD cache (option) / Auto tiering (option)
Data Protection Snapshot / Local volume clone
Remote Replication Asynchronous (Built-in) / Synchronous (option)
Security HTTPS / SSH / iSCSI CHAP / ISE & SED
Management Web UI / Serial console / RESTful API / S.E.S. / LCM
Appearance
Dimension (H x W x D) (mm) 88 x 438 x 515
Net Weight (kg) 16.4
Gross Weight (kg) 18.8
Others
Memory Protection Cache-to-Flash (Supercapacitor Module + Flash Module)
System Fan 4 pcs
Power Supply Unit 850 W x 2 (80 PLUS Platinum)
Power Consumption 407 W
Environment Temperature
Operating Temperature 0°C to 40°C
Storage Temperature -10°C to 50°C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 10% to 90%
Certification
Certifications CE / FCC / BSMI
Warranty
Standard Warranty System: {0} years
Supercapacitor Module: 1 year
