XCubeSAN

XS5224

CPU

Intel® Xeon® Quad-Core Processor

RAM

8GB DDR4 ECC DIMM (Max 128GB)

Active-Active Architecture

Dual-Active Design

High Availability

Fully Redundant Modular Design

Easy File Access with Quick Connection

XFinder

XFinder is a desktop utility that searches for QSAN XCubeSAN devices in the local area network.

Find your SAN >

Liquid Crystal Monitor

Portable USB LCM (LCD Module) can help you identify management port IP address.

Ultra High Performance SAN System

RAID EE Technology

Add more disks to reduce rebuild time.

High Secured Data Requirement

Supported the upper-security level, SED and ISE encryption technology.

Virtualization for Enterprise

Let VM storage faster and more efficiently.

Active-Active

Dual-Active Design

The XCubeSAN series features a Dual-Active controller architecture. Both controllers concurrently provide storage services in real time. Active-Active architecture doubles the available host bandwidth and cache-hit ratio which ensures there is no wasted resource in the system.

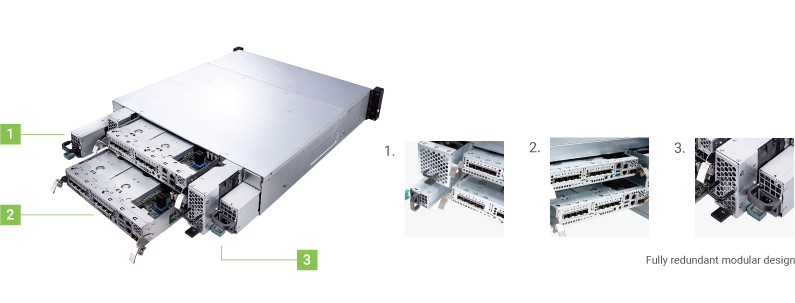

Modular Design

Fully Redundant Modular Design

The XCubeSAN series is a proven high-availability SAN storage system. All of the critical components in the XCubeSAN series are hot pluggable and designed with full redundancy. Additionally, dual-active controller design and automatic failover/failback mechanism and cache mirroring through NTB (Non-Transparent Bridge) bus to achieve Active-Active HA functionality allows the XCubeSAN series to withstand multiple component failures and achieve 99.999% availability.

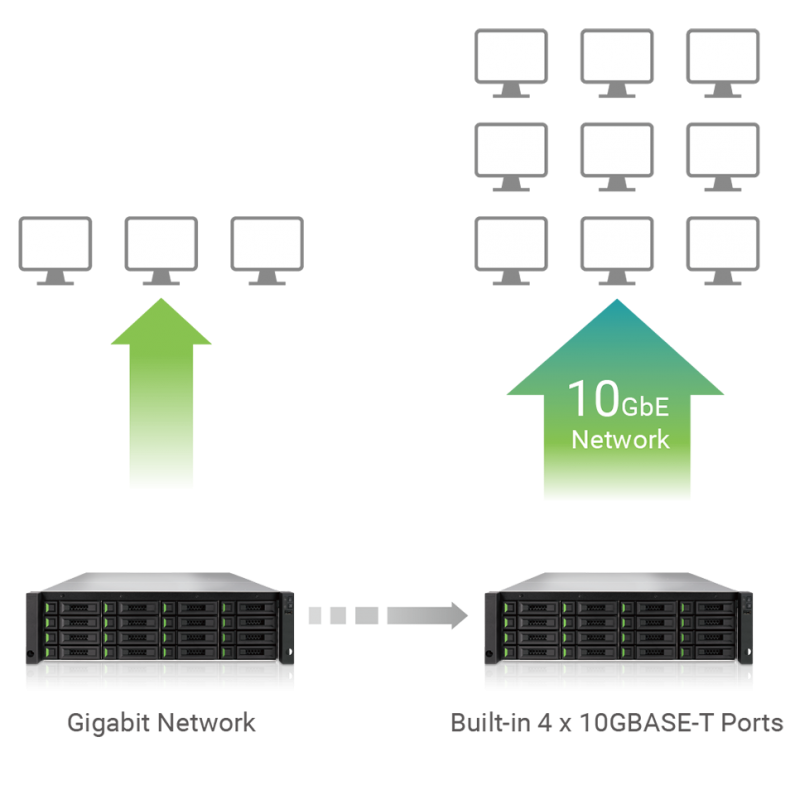

High Speed Network

Built-in High Speed 10GbE LAN Ports

The XCubeSAN series features a Dual-Active controller architecture. Both controllers concurrently provide storage services in real time. Active-Active architecture doubles the available host bandwidth and cache-hit ratio which ensures there is no wasted resource in the system.

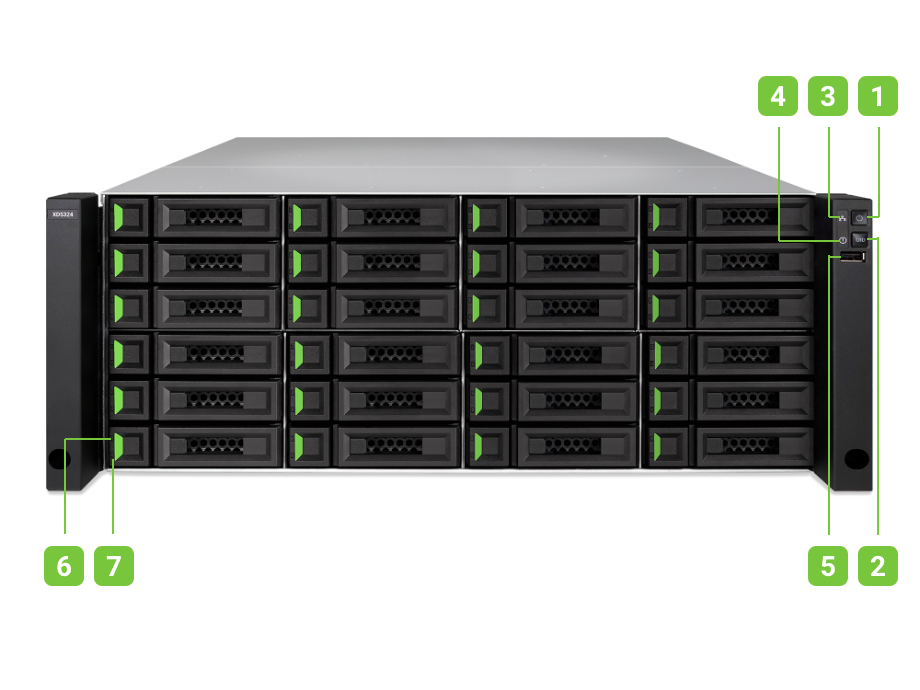

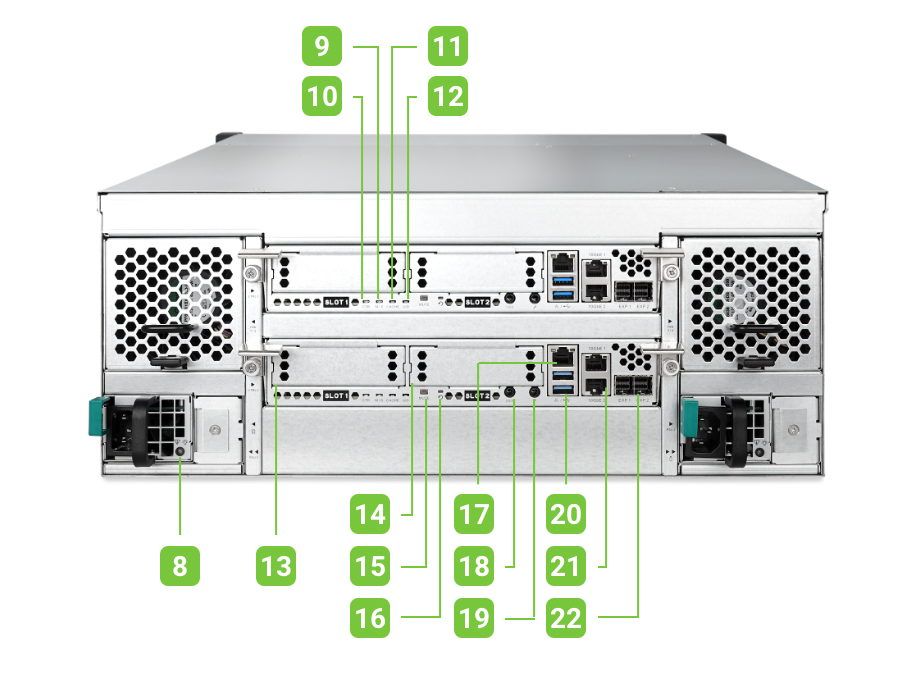

Enclosure Power Button / LED UID Button / LED Enclosure Access LED Enclosure Status LED USB Port Disk Drive Power LED Disk Drive Status LED Power Supply Unit – PSU Indicator and Beep Off Button Controller Status LED Master / Slave LED (only for dual controllers) Dirty Cache LED UID (Unique Identifier) LED Host Card Slot 1 (host card is an optional part) Host Card Slot 2 (host card is an optional part) Buzzer Mute Button Reset to Factory Default Button Management Port Console Port Service Port USB Port 10GbE iSCSI Port 12Gb/s SAS Wide Port

Hardware Specifications

Architecture Dual (Active-Active)
Storage OS SANOS 4 Specification Details
CPU
Processor Intel® Xeon®
CPU Architecture 64-bit
CPU Frequency Quad-Core (8-core processor models are also available)
Memory
System Flash -
Memory Module Pre-installed 8GB DDR4 ECC DIMM
Total Memory Slots 4
Memory Expandable up to 128GB
Notes Per Controller
Storage
Drive Bays

3.5" Slot x 24
Maximum Drive Bays with Expansion Unit 432(*)
Compatible Drive Type

3.5" SAS HDD / SAS SED HDD

3.5" NL-SAS HDD / NL-SAS SED HDD

2.5" SAS SSD / SAS SED SSD

2.5" SATA SSD / SATA SED SSD (*)

2.5" SAS HDD / SAS SED HDD

2.5" NL-SAS HDD / NL-SAS SED HDD
Drive Interface

SAS 12Gb/s
Maximum Internal Raw Capacity 432TB(*)​
Maximum Raw Capacity with Expansion Units 7,776TB(*)​
Hot Swappable Drive
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum Internal Raw Capacity = 16TB drive x 24
  • Capacity may vary by RAID types
  • 6Gb MUX board needed for 2.5" SATA drives in dual controller system
External Port
USB 2.0 Port 1 (Front)
USB 3.0 Port -
HDMI Port -
Others UPS Port x 1
Console Port x 1
Notes -
Connectivity Port
{0}GbE RJ45 LAN Port 1 (Onboard Management Port)
{0}GbE RJ45 LAN Port 2 (Onboard)
2 iSCSI (Option: HQ-10G2T)
{0}GbE SFP+ LAN Port 4 iSCSI (Option: HQ-10G4S2)
Thunderbolt 3 -
{0}GbE SFP28 LAN Port 2 iSCSI (Option)
{0}Gb SFP+ Fibre Channel 4 (Option: HQ-16F4S2)
2 (Option: HQ-16F2S2)
{0}Gb SFP28 Fibre Channel 2 (Option)
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification
Expansion Port
12Gb/s SAS Wide Port 2 (Onboard)
Notes -
PCIe Expansion
Gen3x8 Slot -
Gen3x4 Slot -
Notes -
Host Card Expansion
Gen3x8 Slot 1
Gen2x4 Slot 1
Notes Gen2x4 slot provides 20Gb bandwidth
Appearance
Dimension (H x W x D) (mm) 170.3 x 438 x 515
Chassis Form Factor 19" Rackmount 4U 24 Bay
Net Weight (kg) 25.9
Gross Weight (kg) 28.3
Notes -
Memory Protection
Cache-to-Flash Module
Battery Backup Module + Flash Module
Notes -
Others
System Fan 4 pcs
Replaceable System Fan
Power Recovery
Scheduled Power On/Off -
Wake on LAN/WAN
Power Supply Unit / Adapter 850W x 2 (80 PLUS Platinum)
Redundant Power Supply
AC Input Power Voltage 100V-240V
Power Frequency 50-60 Hz, Single Phase
Power Consumption 648W
British Thermal Unit 2,211BTU
LCM Support
Notes -
Environment Temperature
Operating Temperature 0 to 40°C
Storage Temperature -10°C to 50°C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 10% to 90%
Notes -
Certification
Certifications

CE

FCC

BSMI

VCCI

KCC
Notes -
Warranty
Standard Warranty {0} years
Battery backup module : 1 year
Notes -
