Dual Active Controllers & High Availability Design
The XCubeDAS systems offer fully redundant components for all major functions, including dual controllers, power supplies, fan modules, host ports, and expansion ports. Besides hot swappable components, the XD5300 firmware is able to update firmware without any system down time and balancing IO loading through multiple paths and dual controllers.
High Availability
Redundant & Hot-pluggable Components
The XCubeDAS features a fully modularized, cable-less architecture. In addition to Dual-Active controllers, all critical components inside the unit such as power supply modules, fan modules, and hot pluggable provide fault tolerance capabilities.
Ultra Performance
High Performance & High Throughput
The XCubeDAS solutions set a new storage standard for direct-attached storage. The series provides a smart and elastic runtime configuration of the 10 x 12Gb/s SAS wide ports support and allows IT managers to fully utilize the 480Gb/s data bandwidth per system for various applications. The XD5300 series is fully tested with various configurations and can deliver up to 24,000MB/s sequential read and 20,000MB/s sequential write in throughput and over end-to-end 4.2 million sequential IOPS. It is ideal for video editing, high performance computing, cloud storage, streaming, broadcasting, virtualization, and datacenters.
Central Management
QSAN CubeView Software
The CubeView CMS (Central Management Software) can monitor and manage system log, disk drive status, enclosure, zoning function, firmware update, and history record of system temperature, voltage, and fan speed. The systems also support command line and S.E.S. that allows IT managers complete control of the storage systems and agile configuration of powerful management.

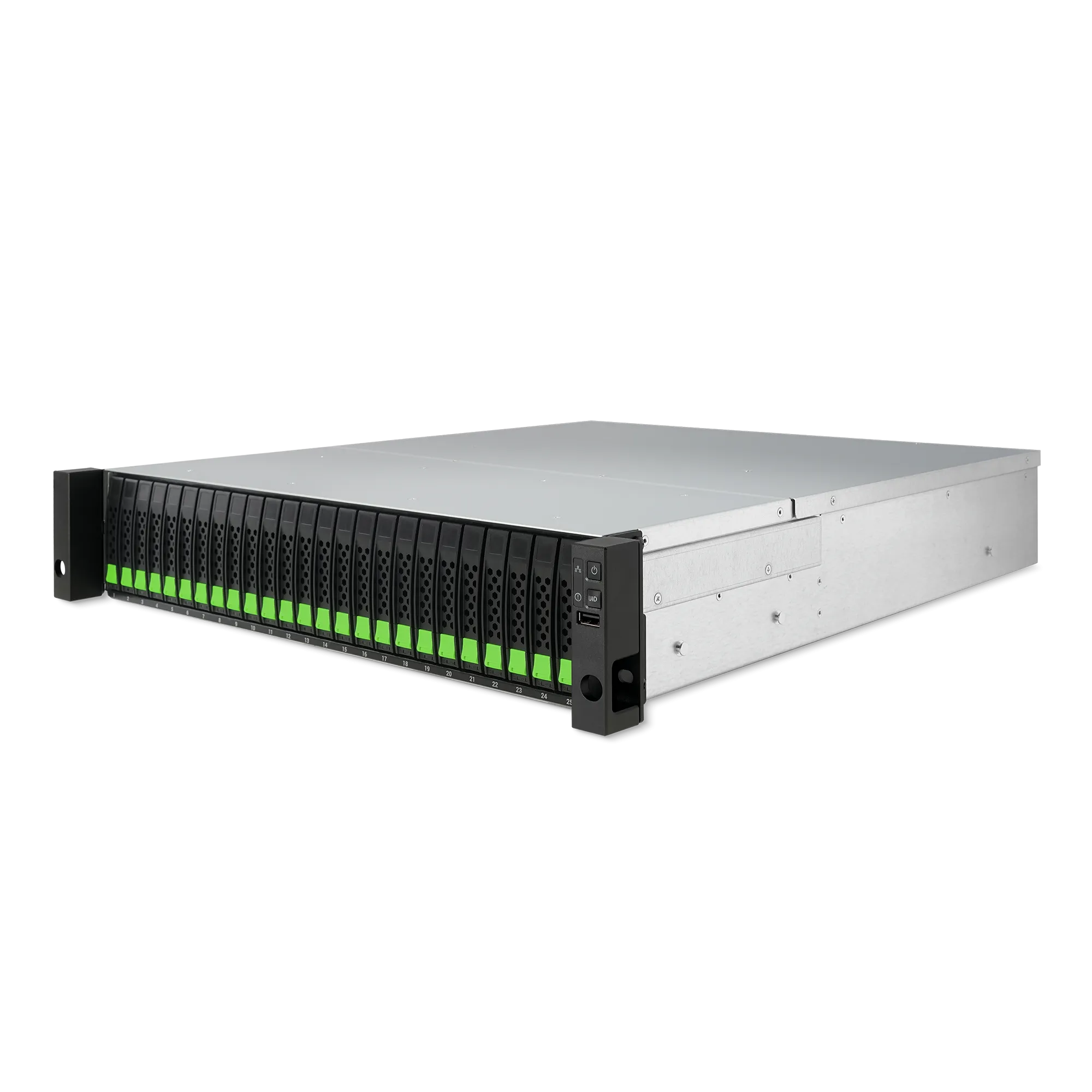

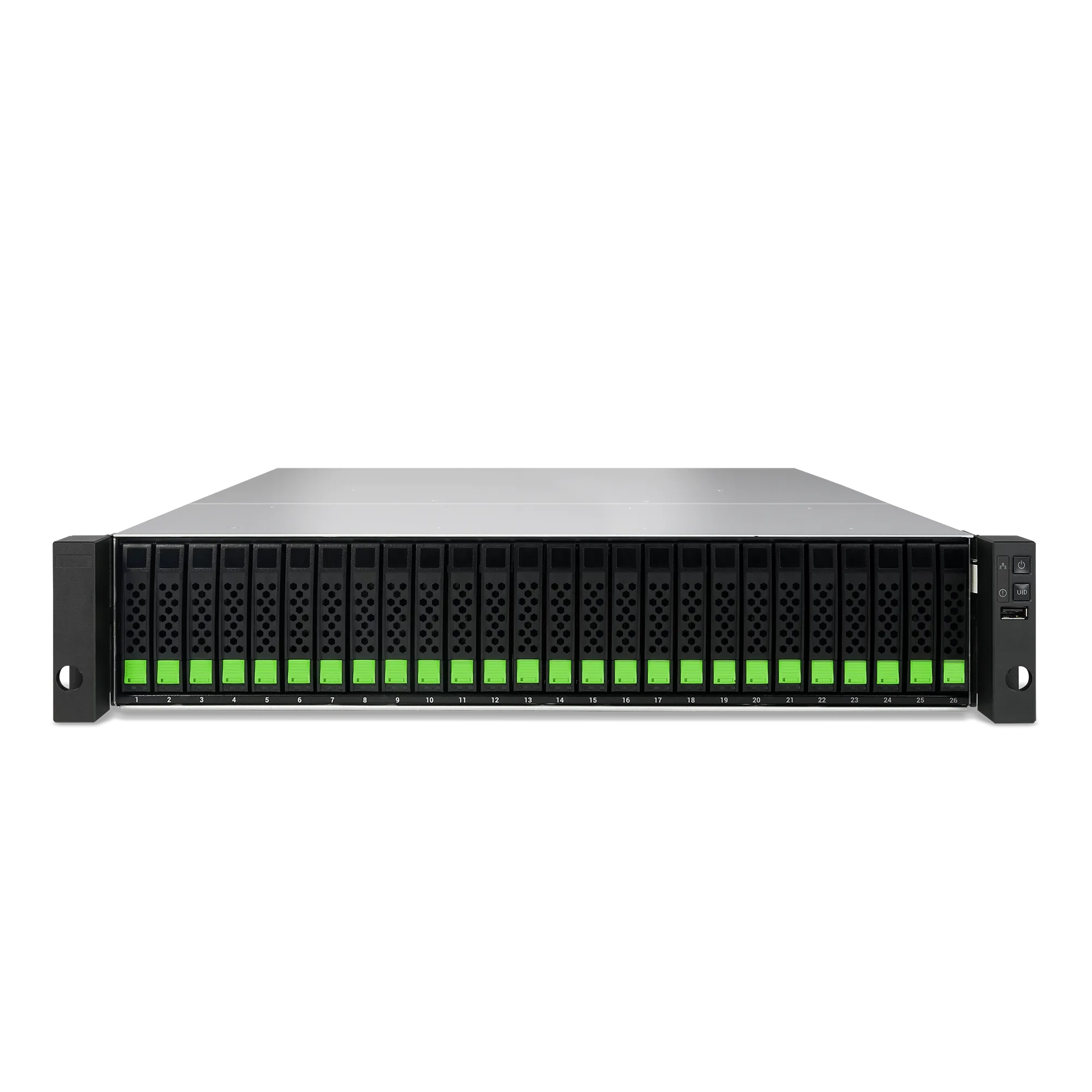

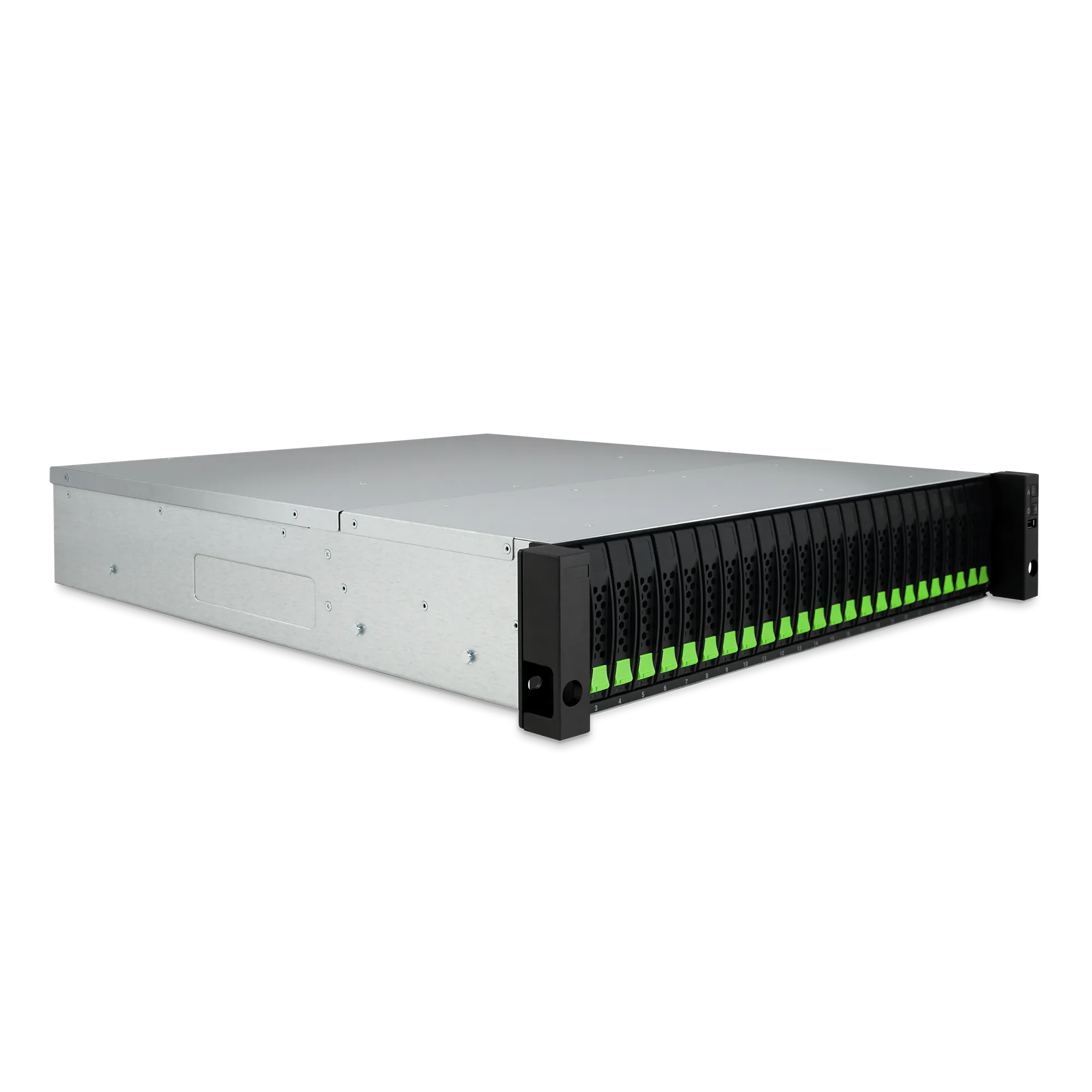

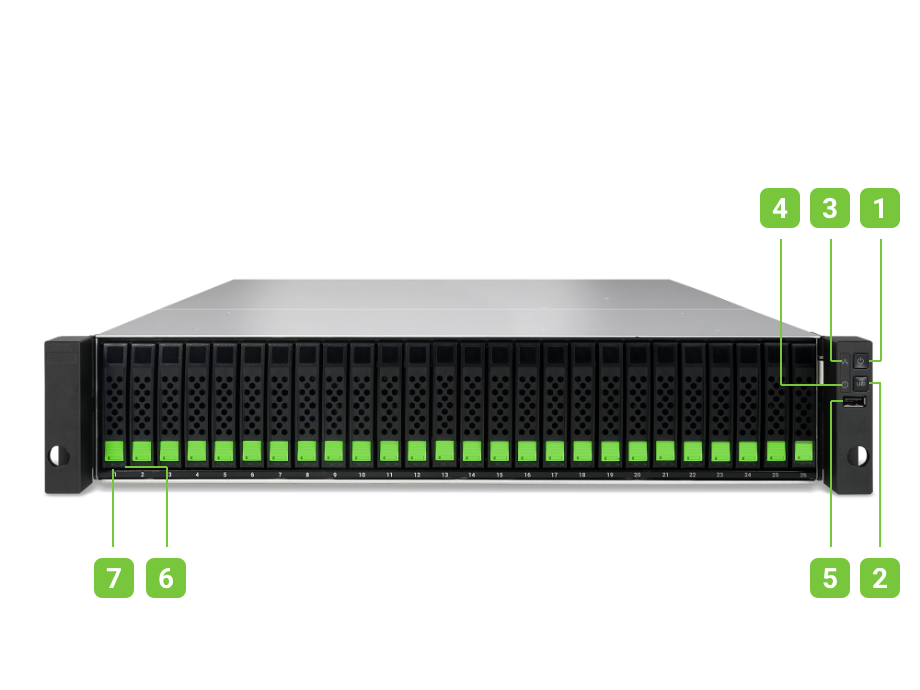

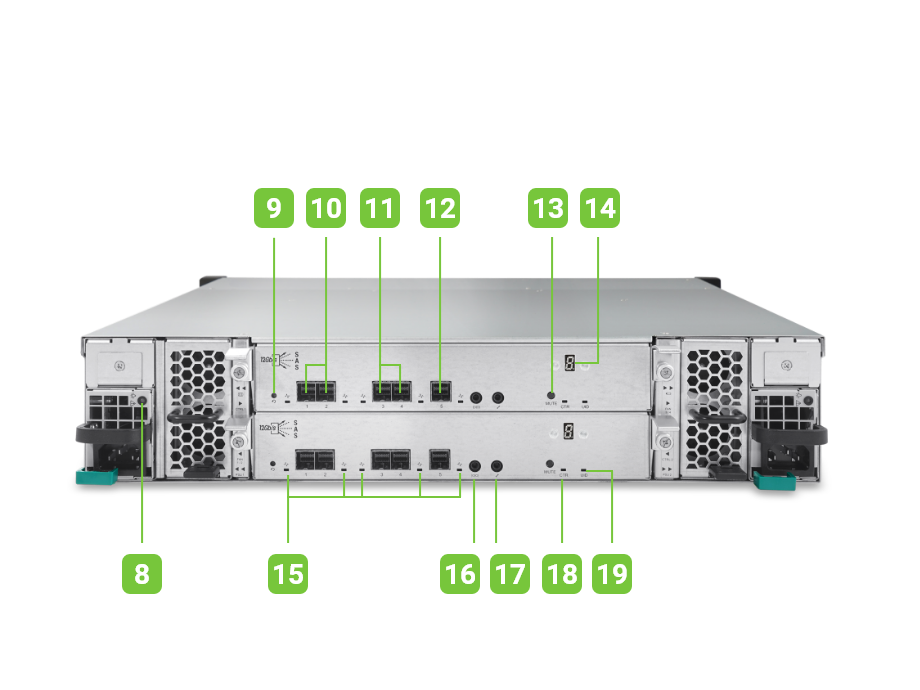

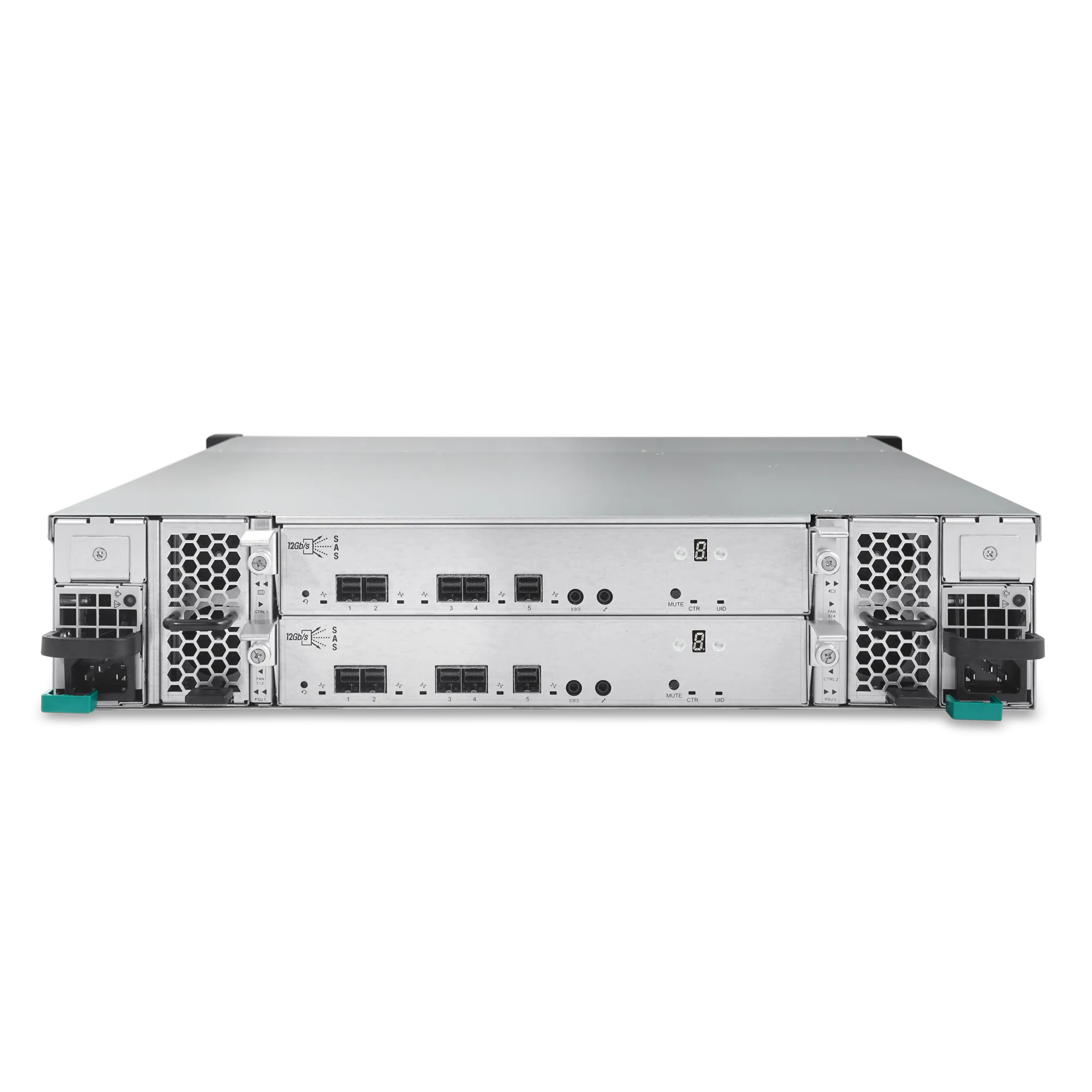

System Power Button/LEDUID Button / LEDEnclosure Access LEDEnclosure Status LEDUSB PortDisk Drive Power LEDDisk Drive Status LEDPower Supply Unit – PSU Indicator and Beep Off ButtonReset to Factory Default Button12Gb/s SAS Wide Port 1 and Port 212Gb/s SAS Wide Port 3 and Port 412Gb/s SAS Wide Port 5Buzzer Mute ButtonSeven-segment LED DisplaySAS LEDConsole PortService PortController Status LEDUnique Identifier LED
Hardware Specifications
Architecture
Dual (Active-active)
Storage OS
-
CPU
Processor
-
CPU Architecture
-
CPU Frequency
-
Memory
System Flash
-
Memory Module Pre-installed
-
Total Memory Slots
-
Memory Expandable up to
-
Notes
-
Storage
Drive Bays
2.5" Slot x 26
Maximum Drive Bays with Expansion Unit
626
Compatible Drive Type
2.5" SAS SSD / SAS SED SSD
2.5" SATA SSD / SATA SED SSD (*)
2.5" SAS HDD / SAS SED HDD
2.5" NL-SAS HDD / NL-SAS SED HDD
Drive Interface
SAS 12Gb/s
Maximum Internal Raw Capacity
399TB
Maximum Raw Capacity with Expansion Units
8,799TB
Hot Swappable Drive
Notes
Applied to QSAN FAS products
For more information, please refer to compatibility matrix and hardware manual
Maximum Internal Raw Capacity = 15.36TB drive x 26
Capacity may vary by RAID types
Up to 10 expansion units behind QSAN storage product
6Gb MUX board needed for 2.5" SATA drives in dual controller system
