XCubeNXT

XN8016D

More balance choices for dual-controller disk storage. XN8016D with balance form factor meets enterpriese needs' for balancing between capacity and cost.

Balance Form Factor Unified Disk Storage

CPU

Intel ® Xeon ® Quad-Core Processor

RAM

16GB DDR4 ECC DIMM (Max 128GB)

Network

Built-in 10GbE solution

Easy Maintenance

Modularized Hardware Platform Design

Easy File Access with Quick Connection

Easy File Access with Quick Connection

No need to install any applications, you can easily find your XCubeNXT.

Find your NAS

XFinder

XFinder is a desktop utility that searches for QSAN XCubeNXT devices in the local area network.

Find your NAS

SMEs Budget Midrange Value

Scalable

Ultra-high scalability. Make cost-effective planning in the initial stage of expansion. No need to stop any services.

Integrated

Lightly integrated with advanced technology. Optimal combination of performance and cost consideration.

Mature

More than 10 years' experience in Mid-range storage business. Continues to provide reliable storage solution and service to customers.

Performance

Provides many tools to accelerate application execution efficiency

Laborless

Entire installation process within five minutes. , Easily monitor the entire QSAN product with one system with XInsight.

Enterprise-Grade

Secured, centralized repository and storage efficiency for business information.

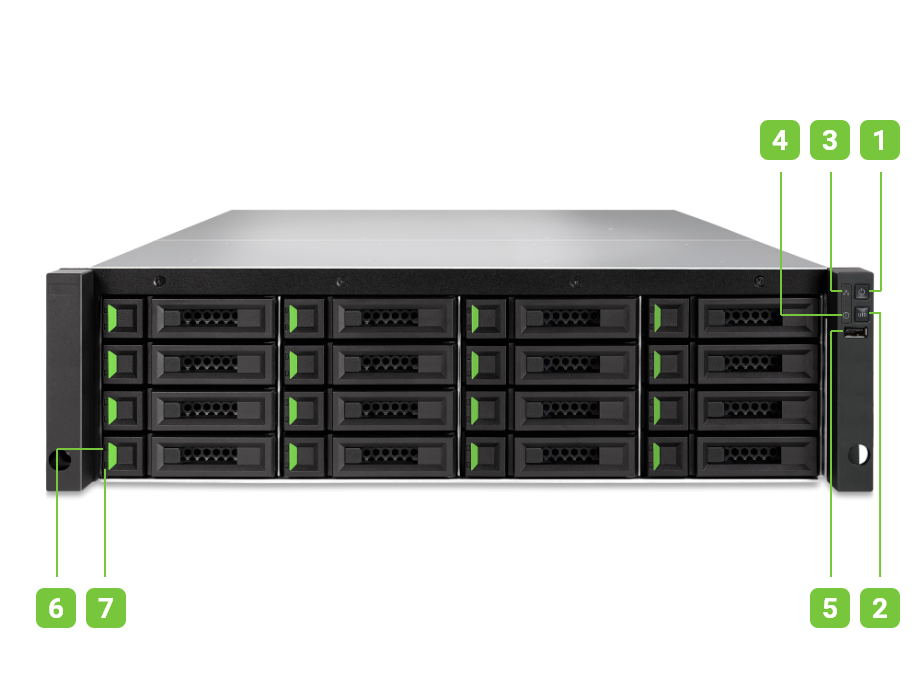

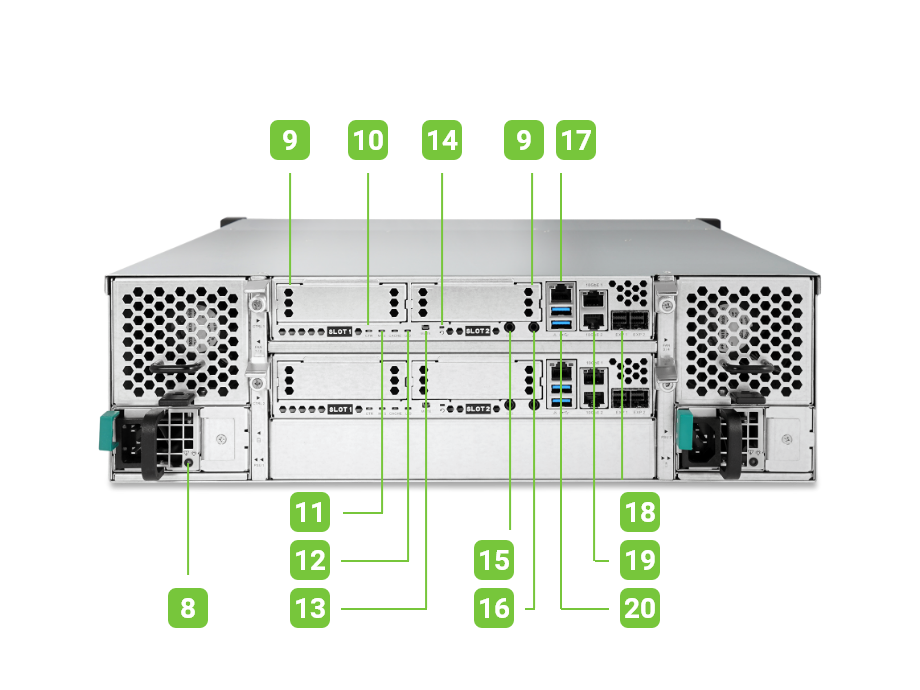

Power Button/LED Indicator for Power Status Unique Identifier (UID) Button/LED Indicator System Access LED Indicator System Status LED Indicator USB 2.0 Port Disk Drive Power LED Indicator Disk Drive Status LED Indicator Power Supply Unit – PSU Indicator and Beep Off Button Additional Host Card Expansion Slot Controller Status LED Master/Slave LED Unique Identifier (UID) LED Indicator Mute Button Reset Button Console Port Service Port Gigabit LAN Port 12Gb/s SAS Wide Port 10GbE LAN Port USB 3.0 Port

Hardware Specifications

Architecture Active-Active dual-controller
Storage OS QSM  Specification Details
CPU
Processor Intel® Xeon®
CPU Architecture 64-bit
CPU Frequency Quad-Core (Also support 8 core model)
Memory
System Flash 16GB USB DOM
Memory Module Pre-installed 16GB DDR4 ECC DIMM (per controller)
Total Memory Slots 4 (per controller)
Memory Expandable up to 128GB (per controller)
Notes -
Storage
Drive Bays

3.5" Slot x 16
Maximum Drive Bays with Expansion Unit 424
Compatible Drive Type

3.5" SAS HDD

3.5" SAS SED HDD

3.5" NL-SAS HDD

3.5" NL-SAS SED HDD

2.5" SAS SSD

2.5" SAS SED SSD

2.5" SATA SSD(*)

2.5" SATA SED SSD(*)

2.5" SAS HDD

2.5" SAS SED HDD

2.5" NL-SAS HDD

2.5" NL-SAS SED HDD
Drive Interface

SAS 12Gb/s and SATA 6Gb/s

(backward compatible with SAS 6Gb/s and SATA 3Gb/s)
Maximum Internal Raw Capacity 320TB
Maximum Raw Capacity with Expansion Units 8,480TB
Hot Swappable Drive
Notes
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum internal raw capacity= 16 TB drive x 16
  • Capacity may vary by RAID types
  • In dual-controller system, 2.5”SATA HHD need 6G MUX board
External Port
USB 2.0 Port 1 (Front)
USB 3.0 Port 2 (Rear)
HDMI Port -
Others UPS Port x1
Controller port x 1
Notes -
Connectivity Port
{0}GbE RJ45 LAN Port 1 (Onboard)
{0}GbE RJ45 LAN Port 2 (Onboard)
2 iSCSI (Option: HQ-10G2T)
{0}GbE SFP+ LAN Port 4 iSCSI (Option: HQ-10G4S2)
Thunderbolt 3 -
{0}GbE SFP28 LAN Port 2 iSCSI (Option: RHCE25P2)
{0}Gb SFP+ Fibre Channel 4 FCP (Option: HQ-16F4S2)
2 FCP (Option: HQ-16F2S2)
Notes

For more information, please refer to accessory book

Please refer to the section below for expansion slot specification

Expansion Port
12Gb/s SAS Wide Port 2 (Onboard)
Notes -
PCIe Expansion
Gen3x8 Slot -
Gen3x4 Slot -
Notes -
Host Card Expansion
Gen3x8 Slot 1
Gen2x4 Slot 1
Notes Gen2x4 slot provides 20Gb bandwidth
Appearance
Dimension (H x W x D) (mm) 130.3 x 438 x 515
Chassis Form Factor 19" Rackmount 3U 16 Bay
Net Weight (kg) 22
Gross Weight (kg) 31.1
Notes -
Memory Protection
Cache-to-Flash Module
Battery Backup Module + Flash Module -
Notes Does not need Battery Backup Module
Others
System Fan 4 pcs
Replaceable System Fan
Power Recovery
Scheduled Power On/Off -
Wake on LAN/WAN
Power Supply Unit / Adapter 850W x 2 (80 PLUS Platinum)
Redundant Power Supply
AC Input Power Voltage 100V-240V
Power Frequency 50-60 Hz, Single Phase
Power Consumption 534W
British Thermal Unit 1,822BTU
LCM Support
Notes -
Environment Temperature
Operating Temperature 0 to 40°C
Storage Temperature -10°C to 50°C
Operating Relative Humidity 20% to 80% non-condensing
Non-operating Relative Humidity 10% to 90%
Notes -
Certification
Certifications

CE

FCC

CCC

BSMI

VCCI

KCC
Notes -
Warranty
Standard Warranty {0} years
Notes -
