XD5316 Features Specs

XCubeDAS

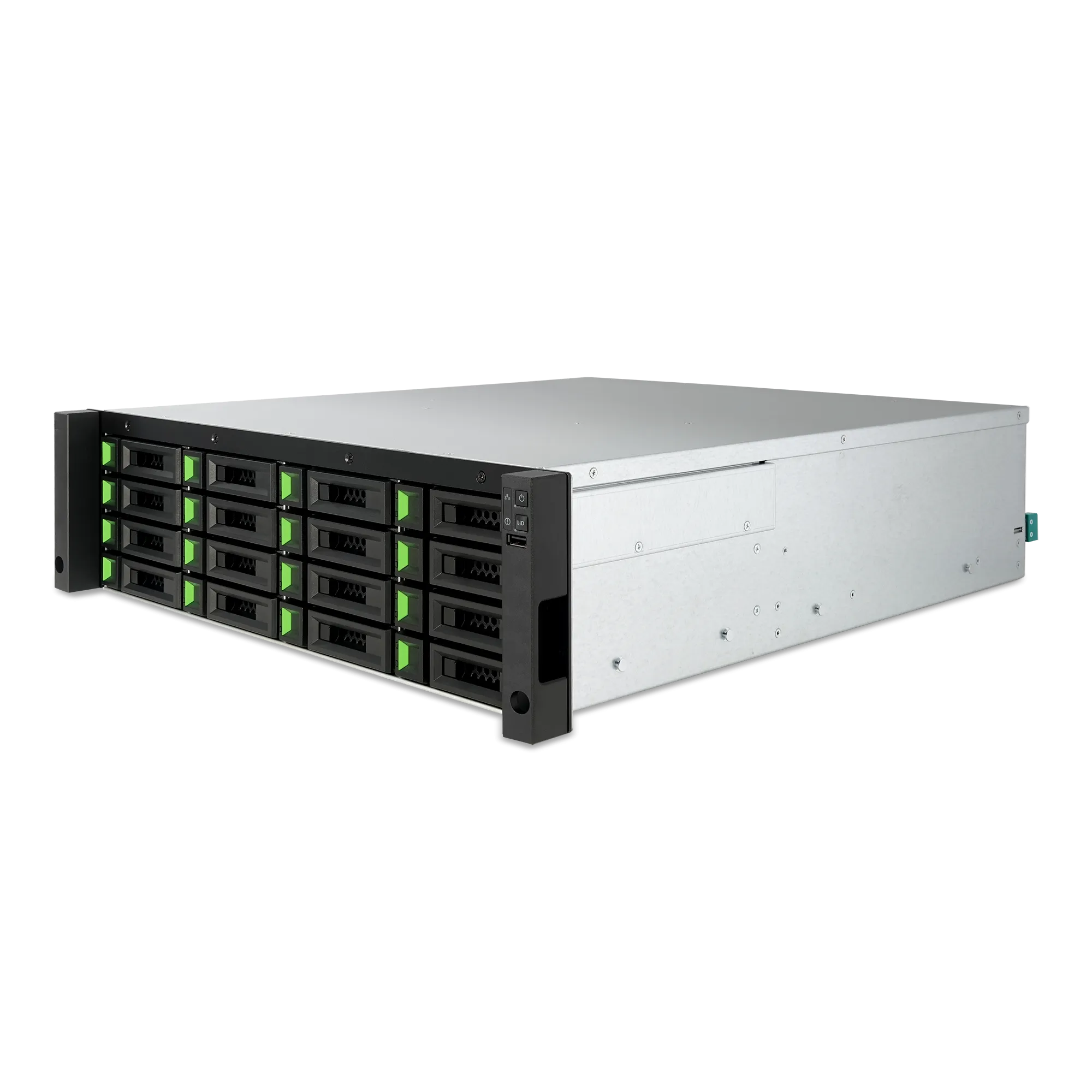

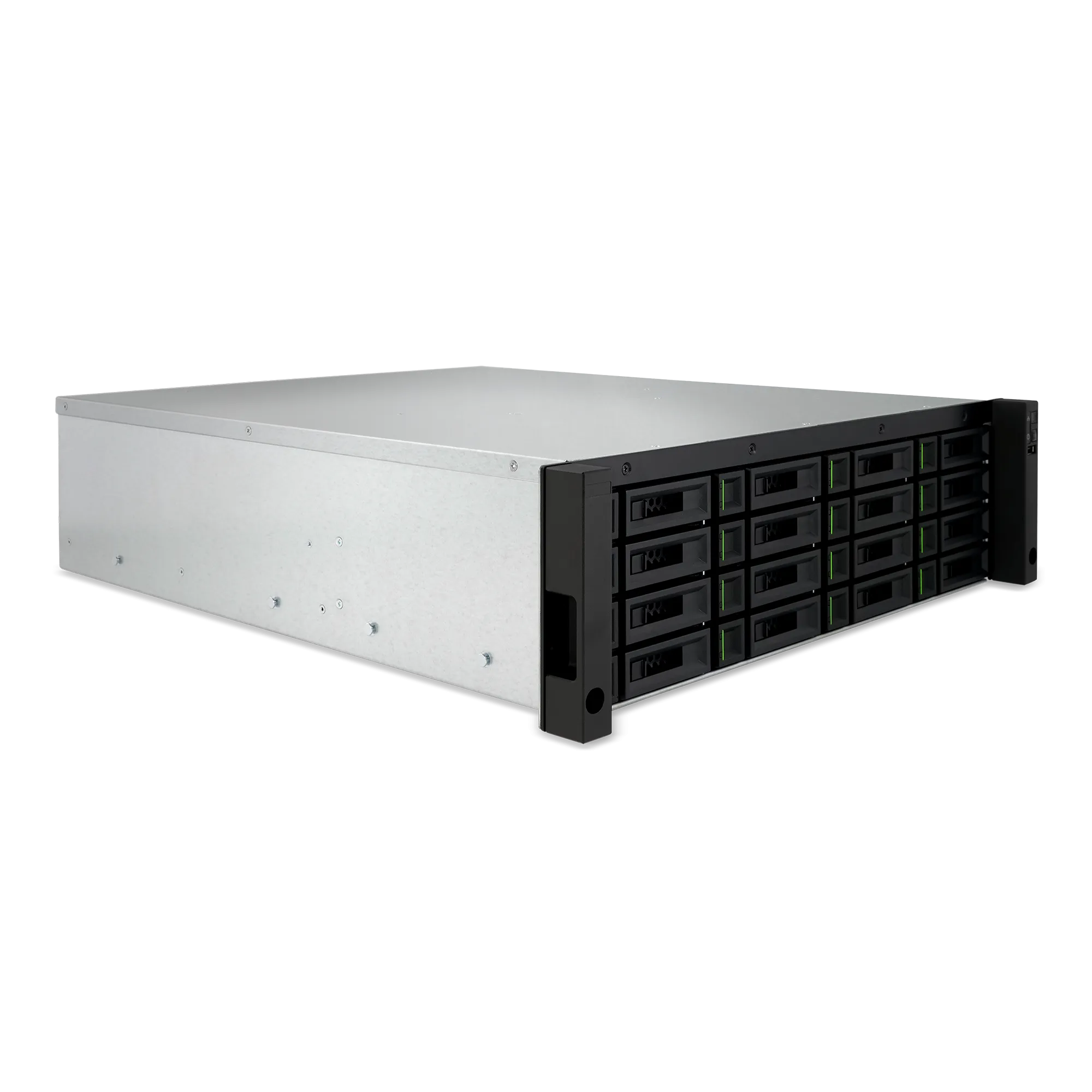

XD5316

Active-Active Architecture

Dual-Active Design

High Availability

Fully Redundant Modular Design

Ultra Performance

12Gb SAS 3.0 Controller

Central Management

CubeView Software

>

Active-Active

Dual Active Controllers & High Availability Design

The XCubeDAS systems offer fully redundant components for all major functions, including dual controllers, power supplies, fan modules, host ports, and expansion ports. Besides hot swappable components, the XD5300 firmware is able to update firmware without any system down time and balancing IO loading through multiple paths and dual controllers.

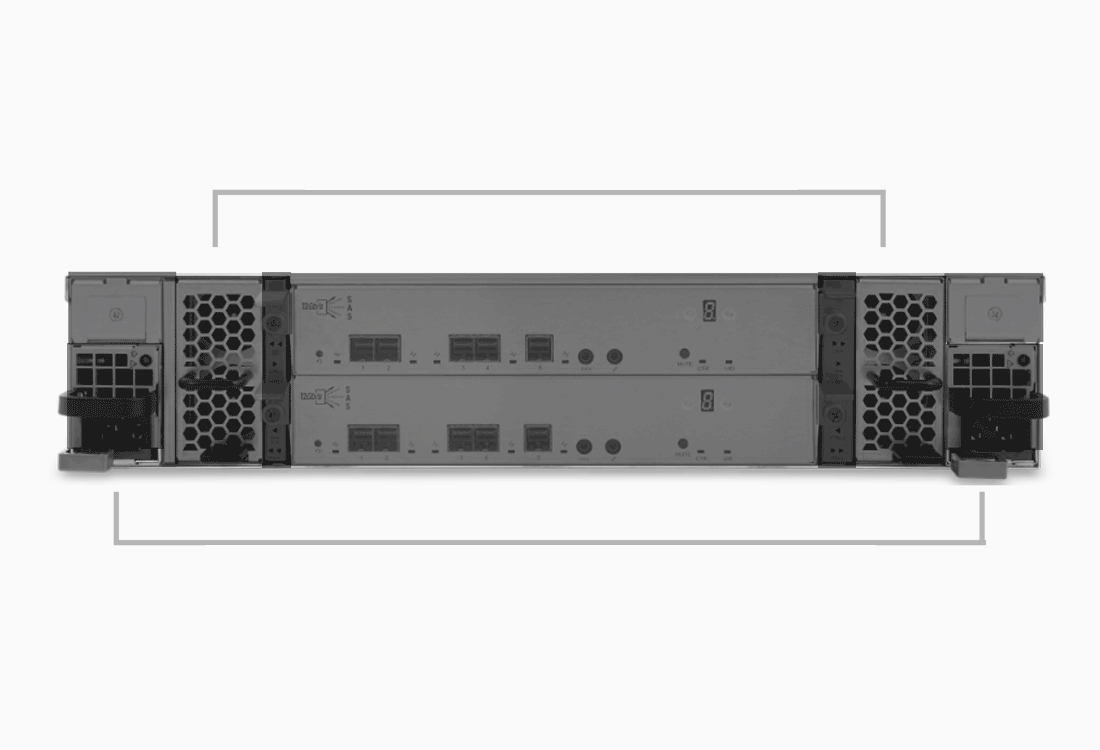

High Availability

Redundant & Hot-pluggable Components

The XCubeDAS features a fully modularized, cable-less architecture. In addition to Dual-Active controllers, all critical components inside the unit such as power supply modules, fan modules, and hot pluggable provide fault tolerance capabilities.

Ultra Performance

High Performance & High Throughput

The XCubeDAS solutions set a new storage standard for direct-attached storage. The series provides a smart and elastic runtime configuration of the 10 x 12Gb/s SAS wide ports support and allows IT managers to fully utilize the 480Gb/s data bandwidth per system for various applications. The XD5300 series is fully tested with various configurations and can deliver up to 24,000MB/s sequential read and 20,000MB/s sequential write in throughput and over end-to-end 4.2 million sequential IOPS. It is ideal for video editing, high performance computing, cloud storage, streaming, broadcasting, virtualization, and datacenters.

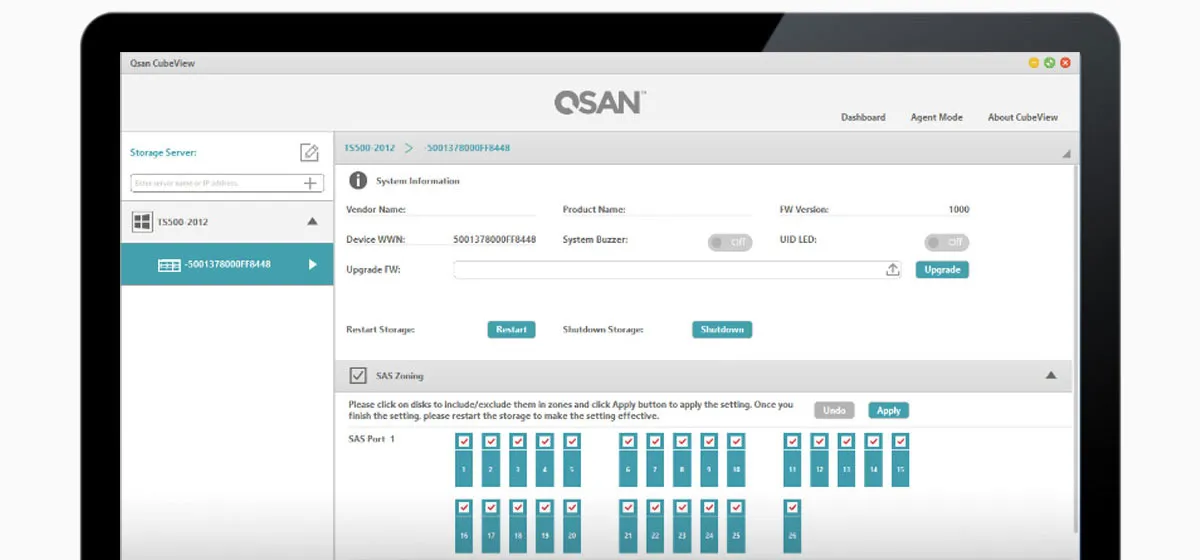

Central Management

QSAN CubeView Software

The CubeView CMS (Central Management Software) can monitor and manage system log, disk drive status, enclosure, zoning function, firmware update, and history record of system temperature, voltage, and fan speed. The systems also support command line and S.E.S. that allows IT managers complete control of the storage systems and agile configuration of powerful management.

Download CubeView Utility >
Download Software Manual >

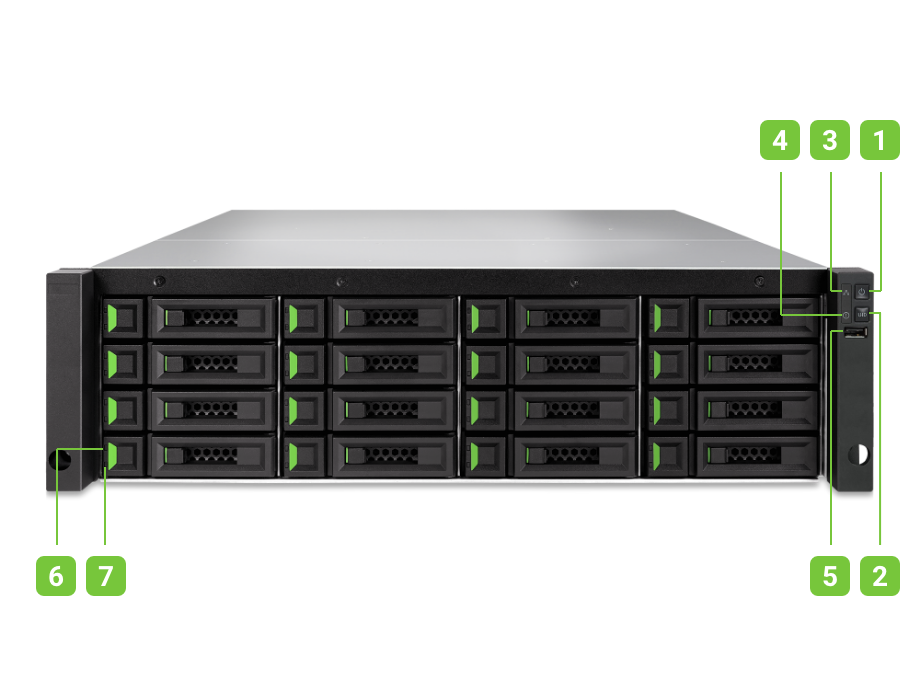

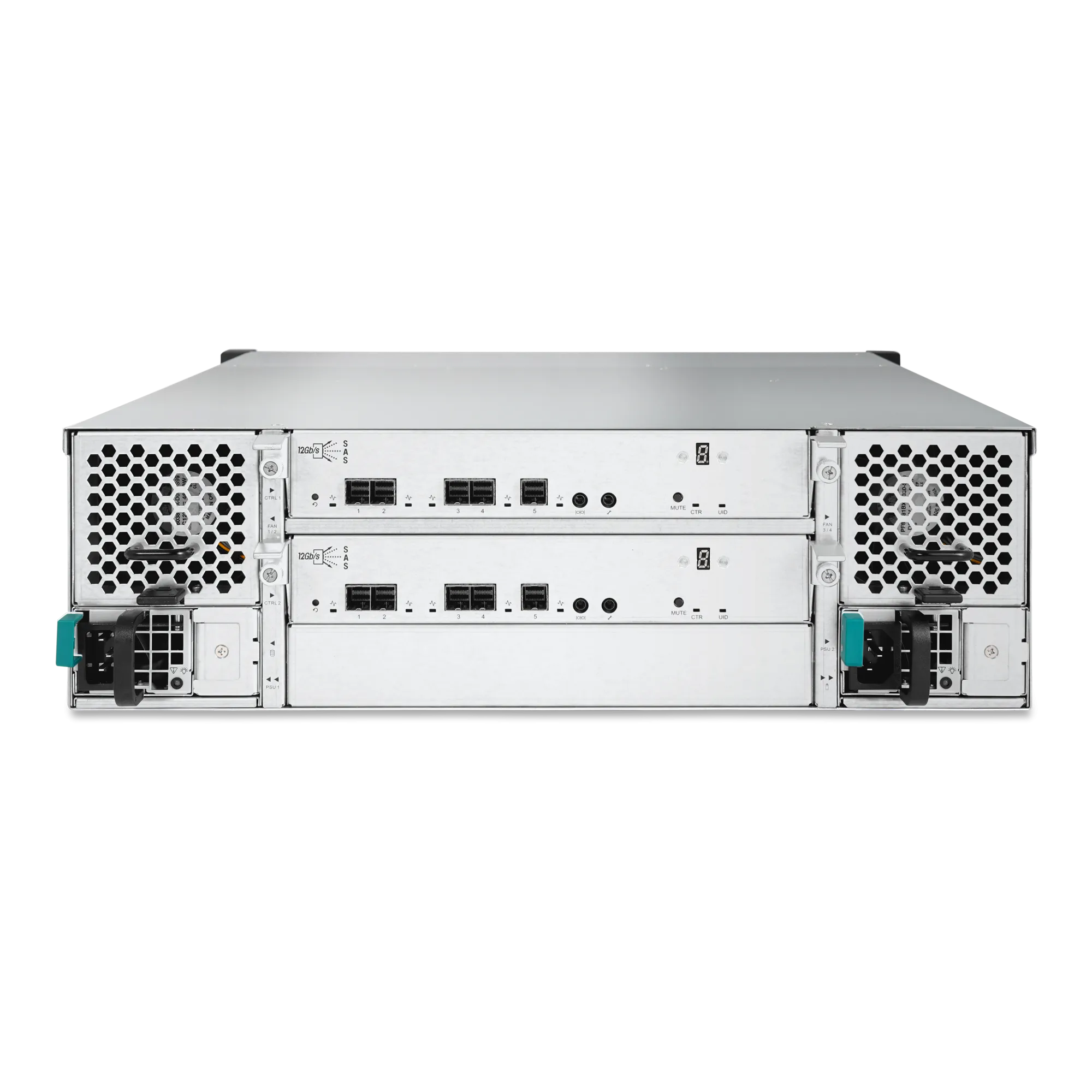

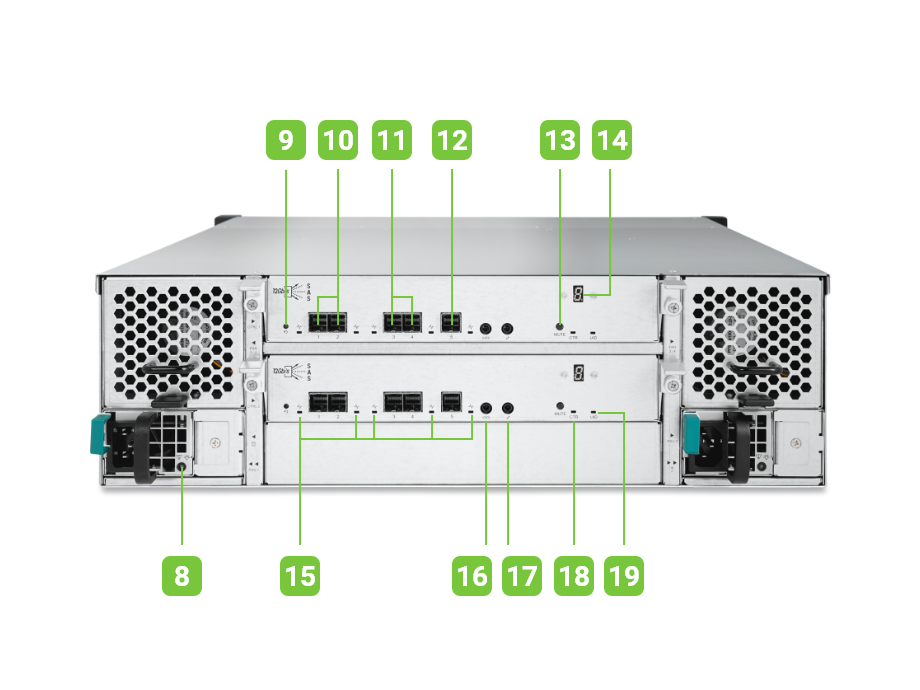

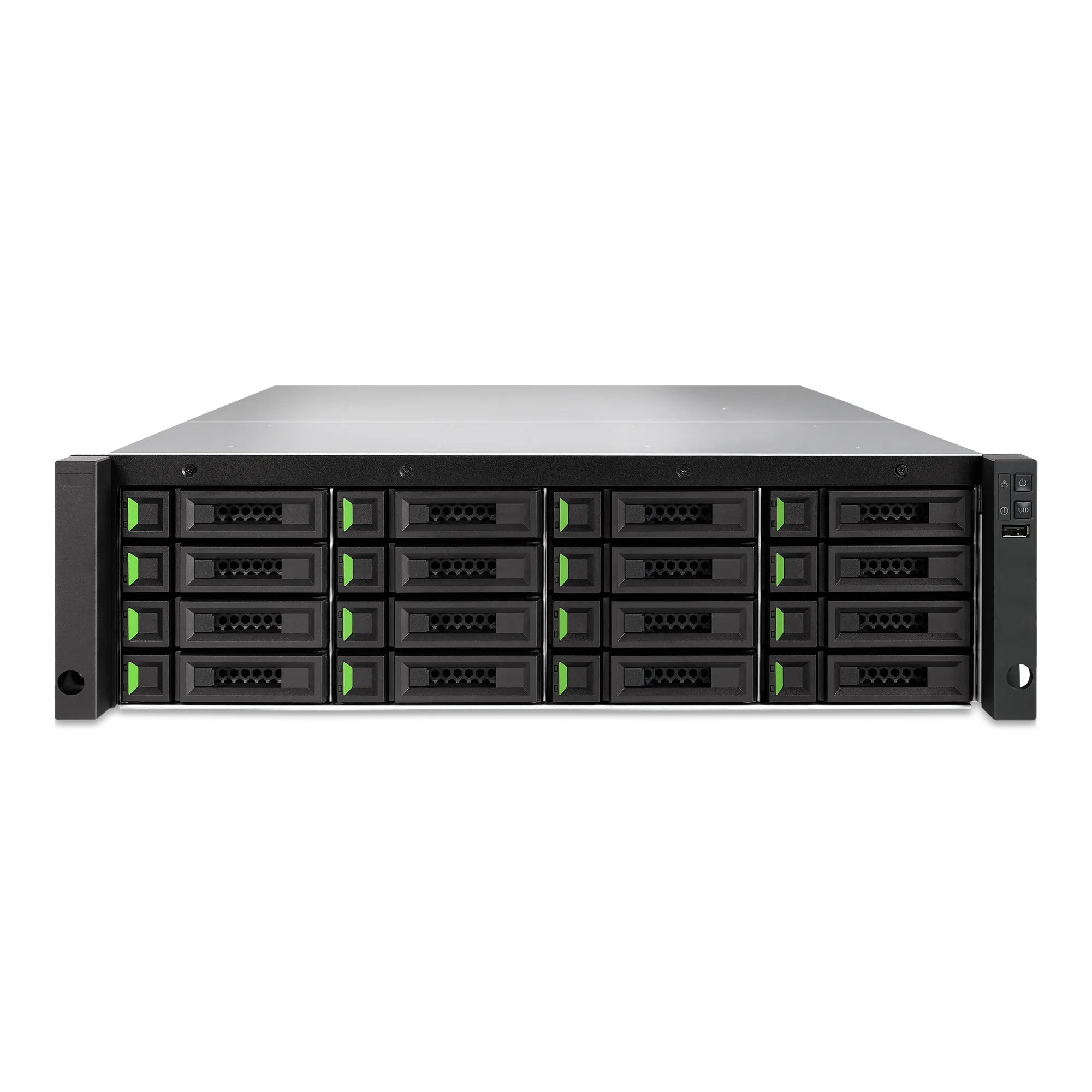

System Power Button/LED UID Button / LED Enclosure Access LED Enclosure Status LED USB Port Disk Drive Power LED Disk Drive Status LED Power Supply Unit – PSU Indicator and Beep Off Button Reset to Factory Default Button 12Gb/s SAS Wide Port 1 and Port 2 12Gb/s SAS Wide Port 3 and Port 4 12Gb/s SAS Wide Port 5 Buzzer Mute Button Seven-segment LED Display SAS LED Console Port Service Port Controller Status LED Unique Identifier LED

Hardware Specifications

ArchitectureDual (Active-active)
Storage OS
CPU
Processor-
CPU Architecture-
CPU Frequency-
Memory
System Flash-
Memory Module Pre-installed-
Total Memory Slots-
Memory Expandable up to-
Notes-
Storage
Drive Bays

3.5" Slot x 16

Maximum Drive Bays with Expansion Unit616
Compatible Drive Type

3.5" SAS HDD / SAS SED HDD

3.5" NL-SAS HDD / NL-SAS SED HDD

2.5" SAS SSD / SAS SED SSD

2.5" SATA SSD / SATA SED SSD (*)

2.5" SAS HDD / SAS SED HDD

2.5" NL-SAS HDD / NL-SAS SED HDD

Drive Interface

SAS 12Gb/s

Maximum Internal Raw Capacity224TB
Maximum Raw Capacity with Expansion Units8,624TB
Hot Swappable Drive
Notes
  • Applied to QSAN SAN and NAS products
  • For more information, please refer to compatibility matrix and hardware manual
  • Maximum Internal Raw Capacity = 14 TB drive x 16
  • Capacity may vary by RAID types
  • Up to 10 expansion units behind QSAN storage products
  • 6Gb MUX board needed for 2.5" SATA drives in dual controller system
External Port
USB 2.0 Port1 (Front)
USB 3.0 Port-
HDMI Port-
OthersConsole Port x 1
Notes-
Connectivity Port
{0}GbE RJ45 LAN Port-
{0}GbE RJ45 LAN Port-
{0}GbE SFP+ LAN Port-
Thunderbolt 3-
{0}Gb SFP+ Fibre Channel-
Notes

-

Expansion Port
12Gb/s SAS Wide Port5 (Onboard)
NotesPer Controller
PCIe Expansion
Gen3x8 Slot-
Gen3x4 Slot-
Notes-
Host Card Expansion
Gen3x8 Slot-
Gen2x4 Slot-
Notes-
Appearance
Dimension (H x W x D) (mm)130.4 x 438 x 515
Chassis Form Factor19" Rackmount 3U 16 Bay
Net Weight (kg)21.7
Gross Weight (kg)24
Notes-
Memory Protection
Super Capacitor Module + Flash Module-
Battery Backup Module + Flash Module-
Notes-
Others
System Fan4 pcs
Replaceable System Fan
Power Recovery
Scheduled Power On/Off-
Wake on LAN/WAN-
Power Supply Unit / Adapter770W/850W x 2 (80 PLUS Platinum)
Redundant Power Supply
AC Input Power Voltage100V-240V
Power Frequency50-60 Hz, Single Phase
Power Consumption534W
British Thermal Unit1,822BTU
LCM Support
Notes-
Environment Temperature
Operating Temperature0 to 40°C
Storage Temperature-10°C to 50°C
Operating Relative Humidity20% to 80% non-condensing
Non-operating Relative Humidity10% to 90%
Notes-
Certification
Certifications

CE

FCC

BSMI

VCCI

KCC

Notes-
Warranty
Standard Warranty{0} years
Notes-
